The Ultimate Guide to Type 2 to Type 2 EV Charging Cables

As the global electric vehicle (EV) market shifts from early adoption to mass-market infrastructure, the Type 2 to Type 2 charging cable has emerged as the essential bridge between vehicles and public power. For B2B stakeholders—from fleet managers to CPOs (Charge Point Operators)—understanding the technical nuances of these cables is critical for ensuring interoperability and long-term ROI.

Ⅰ. Understanding the Role of Type 2 Cables in AC Infrastructure

1.1 Definition & RoleD

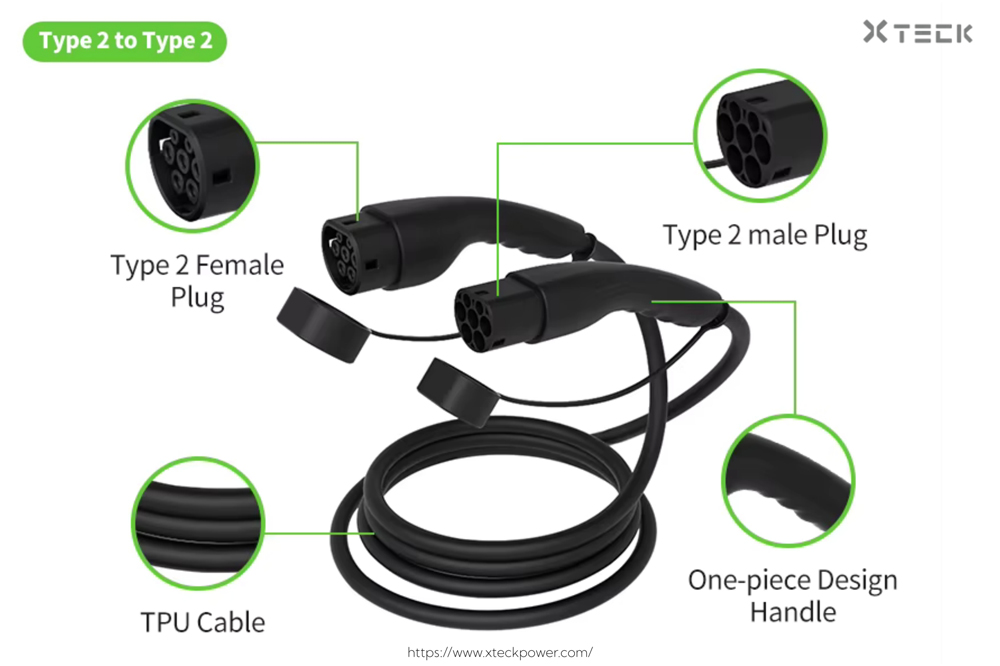

A Type 2 to Type 2 cable (often called a "dual-head" or "female-to-male" cable) connects an EV with a Type 2 inlet to a charging station equipped with a Type 2 socket. Unlike tethered stations, these cables provide the flexibility required for universal public charging.

1.2 The Technical Foundation: Mode 3 Charging

Mode 3 charging is the global standard for safe AC charging using a dedicated EVSE (Electric Vehicle Supply Equipment). Unlike Mode 2 (which uses a standard household socket), Mode 3 involves a specialized communication protocol between the station and the car. The Type 2 to Type 2 cable is the physical manifestation of this protocol, facilitating both power transfer and data exchange.

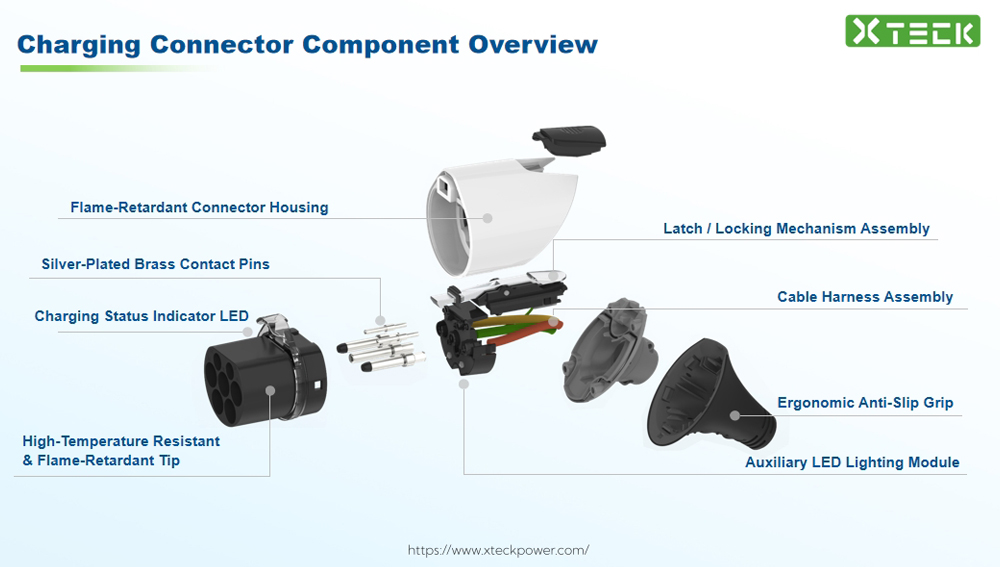

1.3 Key Components

·  Plug & Connector: Ergonomic housings designed for thousands of mating cycles.

·  Cable: High-grade copper conductors with specialized insulation.Copper conductors with TPU or TPE outer jacket, in standard lengths of 4m–10m.

·  Control Pilot (CP) Signal: The "brain" within the 7-pin layout that communicates charging status and current limits.

1.4 Industry Challenge: The Rise of Socket-Only Stations

This infrastructure trend is accelerating across Europe (especially Poland) and high-growth emerging markets like Turkey, the UAE, and Australia.

Why? It reduces maintenance for operators (no cables to be run over or vandalized) and allows drivers with different standards (Type 1 or Type 2) to use the same station.

The Result: For the EV driver, the charging cable has evolved from an optional accessory to essential "on-board" equipment. For B2B providers, offering high-quality cables is now a mandatory part of the hardware ecosystem.

Ⅱ Type 2 Connector（plug）: Standards & Specifications

2.1 IEC 62196-2 Standard

The Type 2 connector (often called the Mennekes connector) is governed by the IEC 62196-2 standard. It is the official mandate for all new EVs sold within the European Union and is widely adopted across Asia and Oceania.

2.2 Pin Configuration (7-Pin Layout)

The connector utilizes seven pins to balance power and safety:

L1, L2, L3: Three-phase power lines.

N: Neutral.PE: Protective Earth (Ground).

CP (Control Pilot): Communication signal.

PP (Proximity Pilot): Detects if the plug is fully inserted and defines the cable's maximum current capacity.

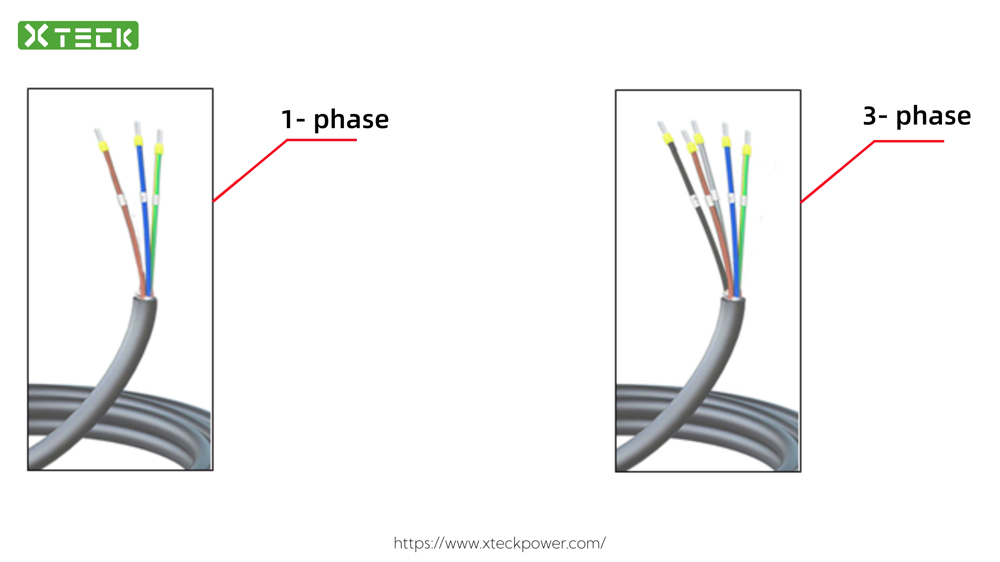

2.3 Single-Phase vs. Three-Phase

· Single-Phase (1P): Uses L1, N, and PE. Common for residential use and smaller EVs.

· Three-Phase (3P): Uses all pins. Essential for high-speed AC charging (11kWto 22kW).

2.4 Locking Mechanisms

To prevent theft or accidental disconnection:

·Cable Lock: The station's electronic lock grips the plug during charging.

·Auto Lock: The vehicle locks the connector to the inlet.

Ⅲ Types of Type 2 to Type 2 Charging Cables

Ⅳ Key Technical Specifications

For B2B buyers and wholesalers, understanding the technical ceiling of your inventory is critical. The choice between 16A and 32A, or single-phase and three-phase, dictates the charging speed and vehicle compatibility.

2.1 Power Output Matrix

To calculate the theoretical maximum power of a cable, we use the following formulas:

Single-Phase:  P = V+I

Three-Phase:P = √3 ×V×I

4.2 Cable Construction

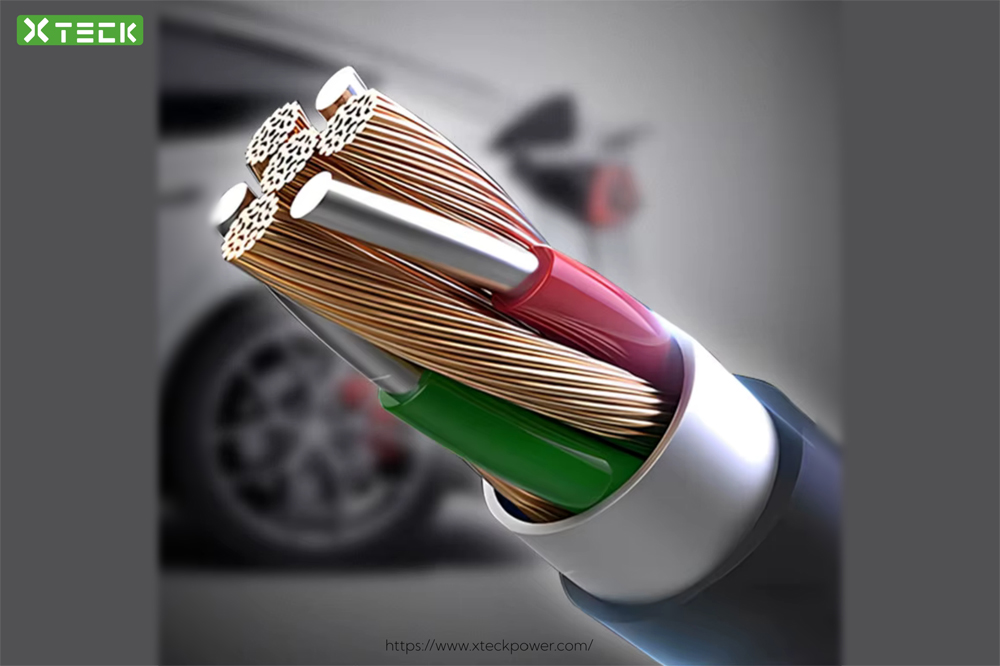

·Cable Cross-Section: Typically 3×6mm² +1×0.5mm²  for 32A single-phase, or  5×6mm² +1×0.5mm² for 32A three-phase.The smaller 0.5mm² conductor serves as the Control Pilot (CP) signal wire per IEC 62196.

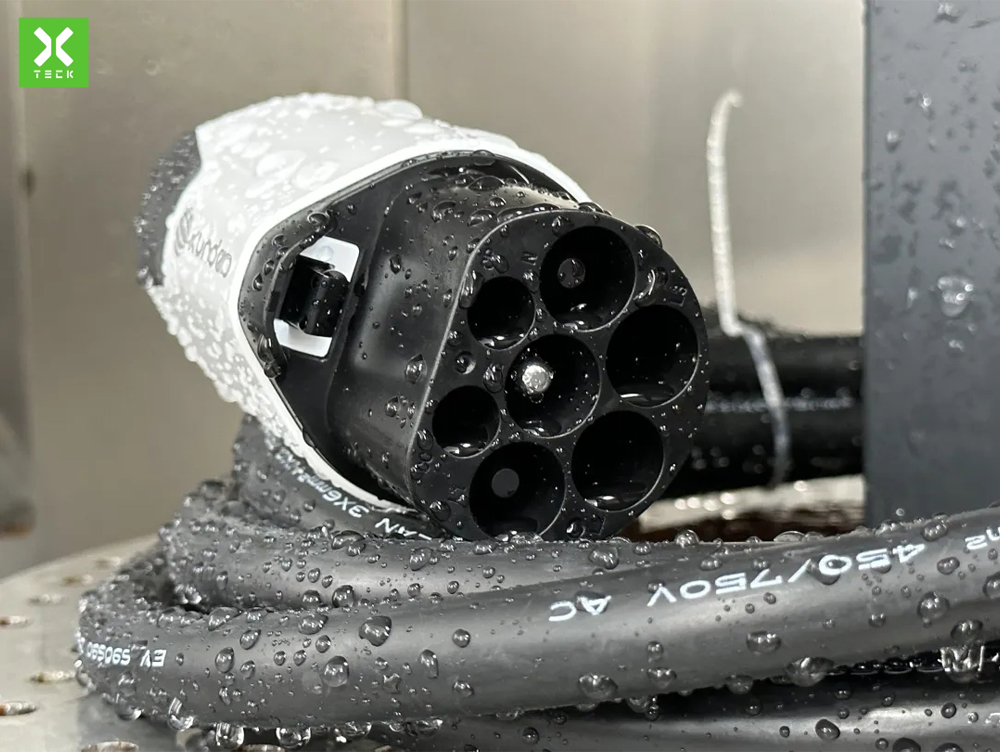

·IP Ratings: IP55 is the industry standard for outdoor use (protection against dust and low-pressure water jets). Premium cables achieve IP65.

·IK Ratings: This rating measures impact resistance. In public charging, cables are frequently dropped or even run over by vehicles; an IK10 rating ensures the internal conductors remain insulated even under mechanical stress.

·Cable Jacket: The first line of defense against environmental stress.
 TPU: Premium choice offering superior UV, oil, and abrasion resistance, with flexibility down to -35°C — ideal for harsh winters.

TPE: Cost-effective alternative, but prone to stiffening in extreme cold, better suited for indoor or mild-climate use.

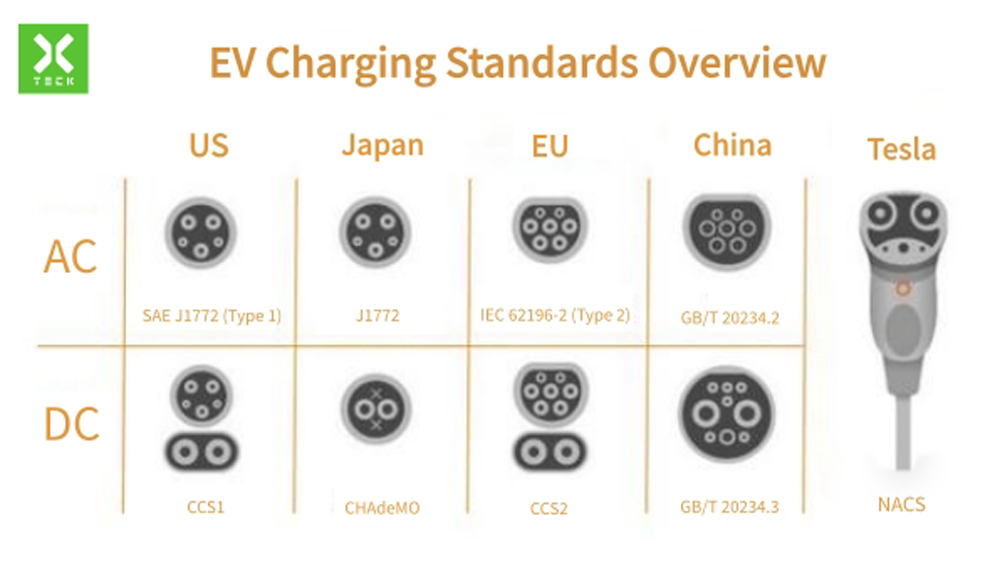

Ⅴ Type 2 vs Other EV Charging Cable Types

Ⅵ B2B Sourcing Strategy: How to Evaluate Suppliers

When sourcing wholesale EV charging cables from China or local distributors, price is only one factor. Quality assurance and customization (OEM/ODM) are what define a successful partnership.

6.1 Technical Selection Criteria

Cable Length: While 5m is the industry standard, 7m or 10m cables are increasingly requested for commercial fleets where parking positions may vary.

Copper Purity: Ensure the internal conductors are 99.9% oxygen-free copper to minimize heat generation and energy loss.

Smart Features: Some advanced cables now include built-in temperature sensors in the plug head to prevent overheating at the socket interface.

6.2 Verification of Certifications (E-E-A-T Compliance)

A reputable supplier must provide verifiable documentation. For the European market, this includes:

CE & UKCA: Mandatory for legal sale in the EU and UK.

TÜV / VDE: Third-party testing that goes beyond self-declaration, proving the cable can withstand thousands of plug cycles.

RoHS & REACH: Ensures the materials used (especially the TPU jacket) are free from hazardous chemicals.

Ⅶ Maintenance & Operational Efficiency

For fleet managers, the "total cost of ownership" includes maintenance.

Proper Coiling: Avoid tight kinks. Use a "figure-eight" or loose coil to prevent internal copper fatigue.

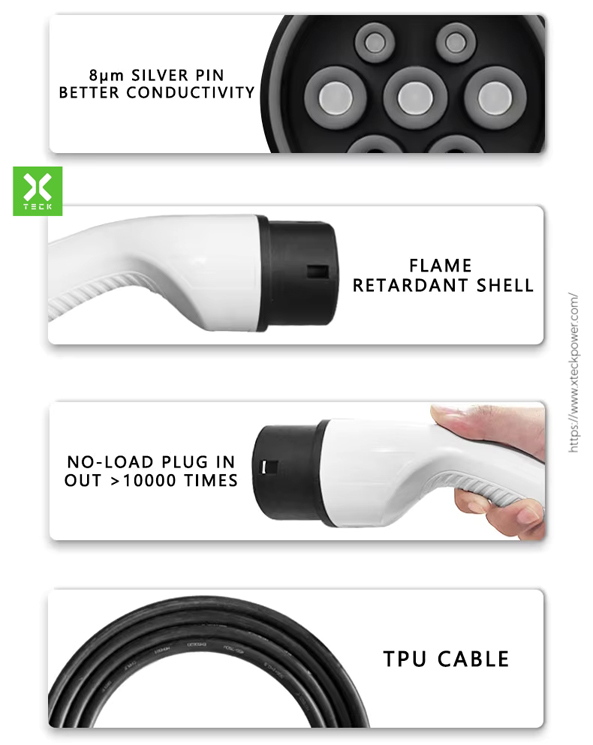

Connector Care: Periodically inspect the silver-plated pins for oxidation or debris. Use compressed air to clean out dust.

Troubleshooting: If a vehicle fails to charge, the most common culprit is a "Control Pilot(CP) Fault," often caused by a bent pin or a moisture-compromised plug.

* For a comprehensive deep-dive into cleaning protocols and storage best practices, read our expert guide:
☞ How to Properly Maintain EV Charging Cables for Long-Term Use

Frequently Asked Questions (FAQ)

·What is the difference between 16A and 32A Type 2 cables? 32A delivers up to 7.4kW？

(single-phase) or 22kW (three-phase). 16A is limited to 3.7kW or 11kW. For commercial and fleet use, 32A three-phase is the recommended spec.

·What IP rating do I need for outdoor use?
IP55 minimum for standard outdoor installations. IP67 for high-exposure or premium infrastructure.

·What certifications should I look for in a Type 2 cable supplier?
CE, IEC 62196-2, and EN 50620 are baseline requirements. UKCA for the UK market. TÜV or ISO 9001 accreditation indicates production-level quality assurance.

·How long does a Type 2-to-Type 2 cable last?
TPU-jacketed cables are rated for 10,000+ mating cycles and 5–10 years of commercial use. TPE degrades faster under UV exposure and cold climates.

·Can I order custom-length or branded Type 2-to-Type 2 cables in bulk?
Yes. MOQ from 100 units. Standard lengths 4m–10m, custom configurations available. Contact us for OEM pricing.

Why Prtner with Xteck for Type 2 Charging Cables

·Why Partner with Xteck for Your Charging Infrastructure?

As a specialist in B2B global social media operations and EVSE manufacturing, Xteck bridges the gap between high-tech engineering and local market needs.

·Direct Factory Access: Located in the heart of China’s EV hub, providing cost-efficiency without middleman markups.

·OEM & White-Label Excellence: Customize cable colors, lengths, and branding to align with your CPO or dealership identity.

·Market-Specific Expertise: From meeting the 22kW three-phase demands of the Dutch market to supporting Australia's rapidly expanding Type 2 charging infrastructure, our cables are engineered for the geography they serve.

Ready to Scale Your Charging Network?

Equip your infrastructure with our best-selling, high-performance solution. Engineered for maximum speed and commercial-grade durability.

☞ View Product Details: Three-Phase 22kW 32A Type 2 to Type 2 EV Charging Cable

Contact our B2B team today for bulk pricing and OEM customization options.
