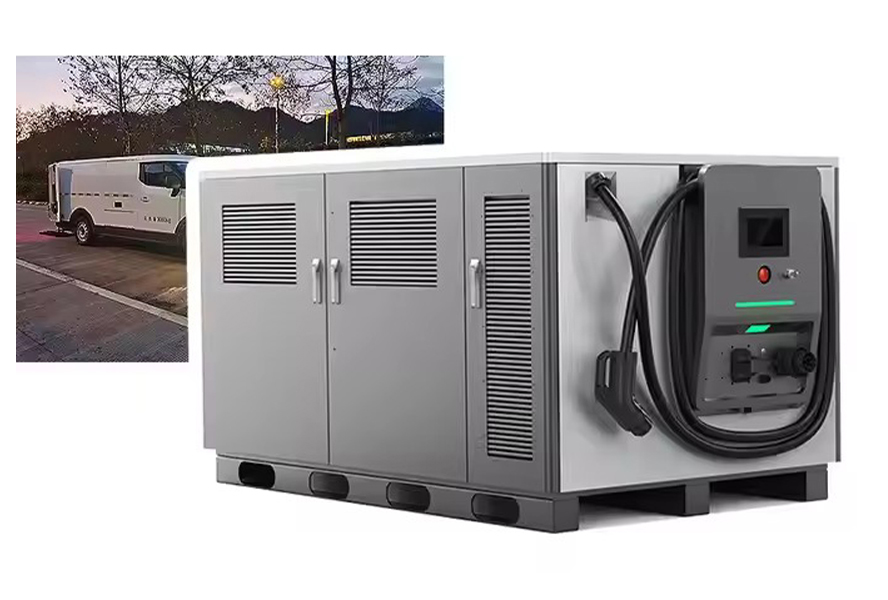

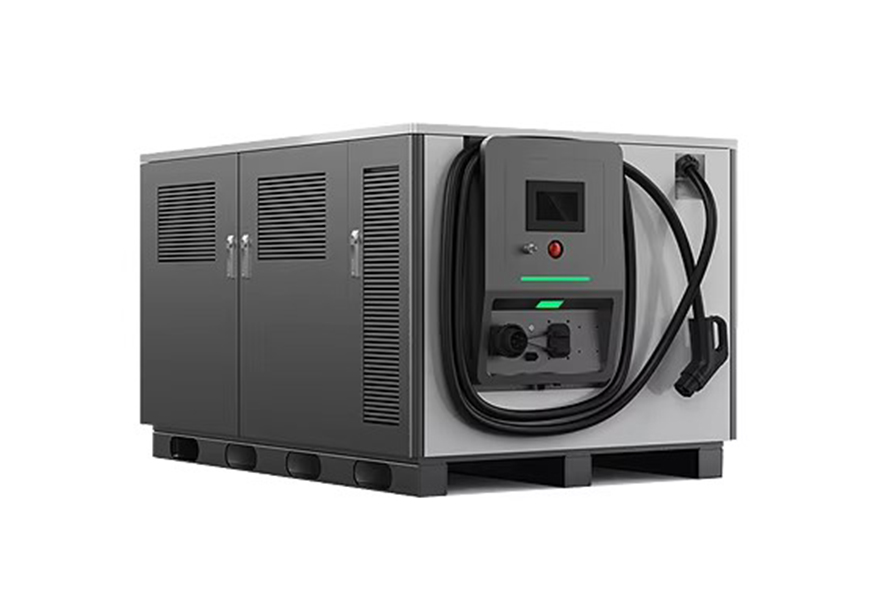

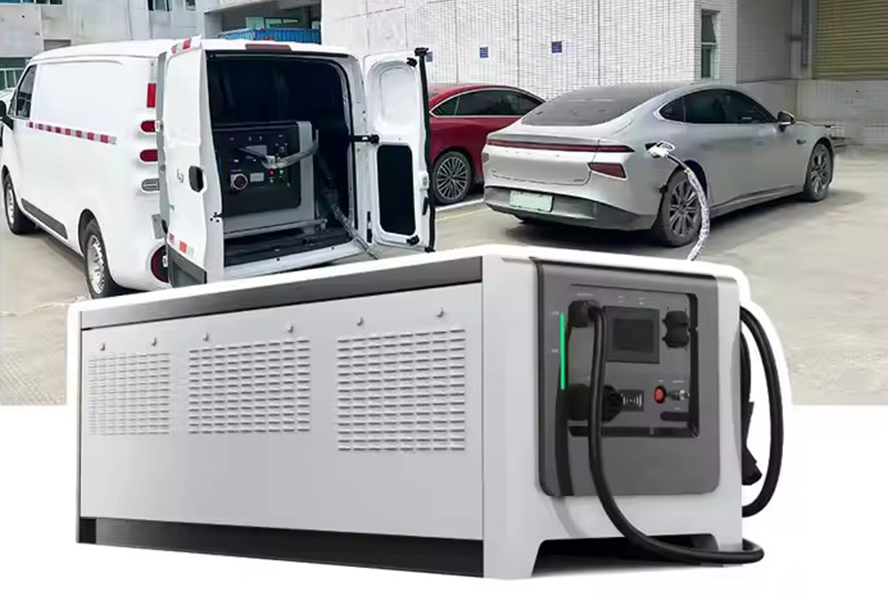

161KWh 120KW Portable Electric Car Energy Storage Charging Station for Road Emergency Rescue

We design and manufacture advanced portable charging systems featuring integrated lithium battery technology for fast, flexible EV power delivery. Our mobile charging stations provide:

Industry-Leading Fast Charging – 60kW DC output supporting CCS1/CCS2/GB-T standards
True Energy Independence – Off-grid operation with optional solar/grid recharge
Smart Scalability – Modular battery systems from 20kWh to 200kWh+ capacity
Rapid Deployment – Compact, towable units ready for immediate use

Specifications of 161KWh 120KW Portable Electric Car Energy Storage Charging Station for Road Emergency Rescue

Product Parameters
BATTERY SYSTEM SPECIFICATIONS
Battery Capacity	161kwh
Battery Chemistry	LiFePO4
Operating Temperature	Charge: 0°C to 60°C/ Discharge: -30°C to 60°C
Cycle Life	>=4000 times (80% DOD) 1C
Cooling method	Liquid cooling
EV CHARGING SPECIFICATIONS
Output Power	120kW
Output Voltage	200 - 1000 VDC
DC Charging gun	Can be configured with one charging cable -CCS 1, CCS 2, GB/T or CHAdeMO
Charging Cable Length	7 Meter or Customized
Communication Protocol	OCPP 1.6J
GENERAL SPECIFICATIONS
Installation Type	Movable
Display Screen	7-inch touch screen
Language	English(Customizable)
IP Rating	IP54
Emergency Stop Button	Yes
Dimensions (L x W x H)	205012301087mm
Weight	<1500KG

Our integrated 161kWh/120kW mobile charging station combines LiFePO4 battery storage with DC fast charging in a compact, portable unit. Featuring:

120kW Fast Charging - Supports CCS1/CCS2/GB-T/CHAdeMO
Dual Power Input - Recharge via grid or DC station (solar compatible)
Smart Operation - RFID/credit card payment & remote OCPP 1.6J management
Modular Design - Easy-to-maintain batteries with 4000+ cycles
24/7 Emergency Service - Ideal for roadside rescue & remote area charging
