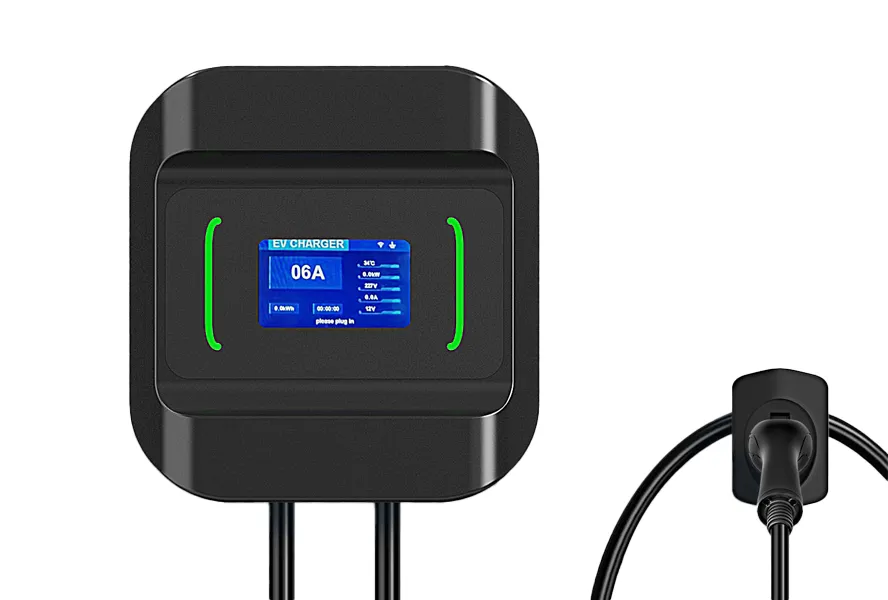

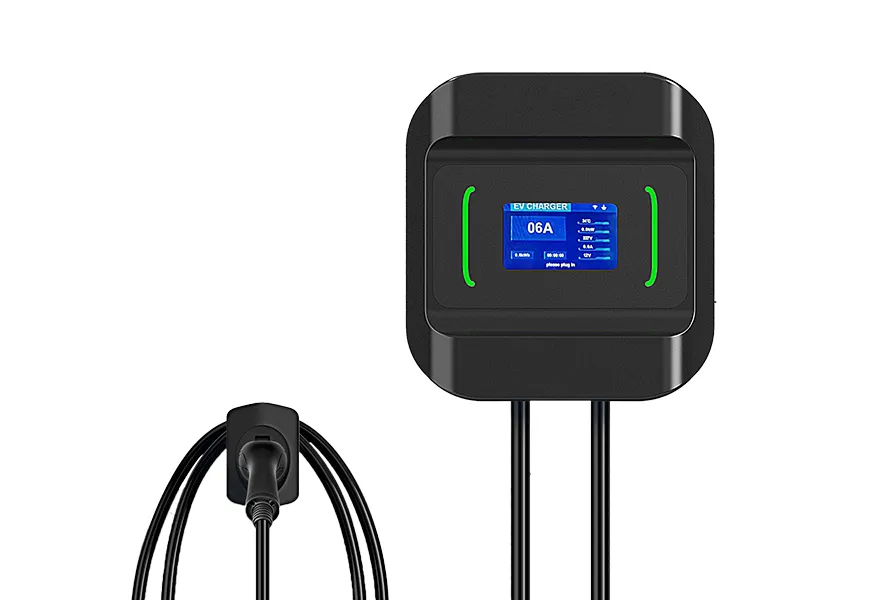

7kW 11kW 22kW Smart Wallbox Type2 AC EV Charger for Home & Commercial

Name: 7kW 11kW 22kW Smart Wallbox Type2 AC EV Charger for Home & Commercial
Brand: XTECK NEW ENERGY TECHNOLOGY CO., LTD.
Price: 200 USD
Availability: InStock

This Type 2 wall-mounted EV charger is a bulk AC charging solution for B2B contractors, property developers and parking operators in EU & UK. Supporting adjustable 16A/32A power with optional LCD display, this IP65 waterproof EV wall box features full safety protection and APP remote management. CE, TÜV, UKCA certified, bare-wire design enables stable panel wiring, and OEM customization is available for residential & commercial charging projects.

Contact Us

Specifications of 7kW 11kW 22kW Smart Wallbox Type2 AC EV Charger for Home & Commercial

Product Specification
Product Name	Wallbox EV Chager
Charging Type	IEC 62196 Type 2	SAE J1772 Type1	SAE J3400 NACS/Tesla
Rated power	7kW/11kW/22kW	7kW/9kW/22kW	7kW/9kW/22kW
Rated current	16A/32A	32A/40A/48A	32A/40A/48A
Protection rank	IP65 Cable; IP65 Station
LCD display	4.3" LCD color screen
LED indicator	blue / red / green
RCD	30m A AC
Input power	AC 250 - 480 V max
Charging cable	5M (TPU Jacket)

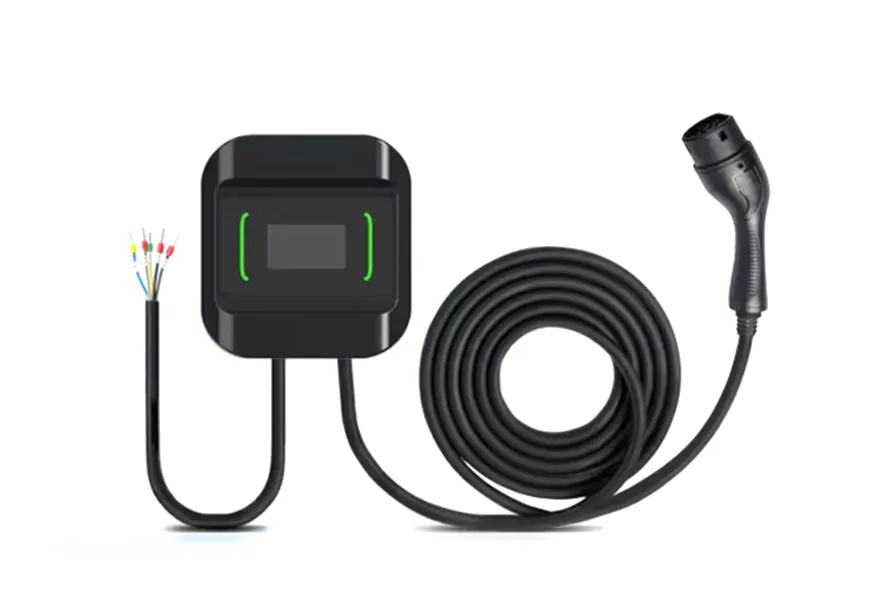

Power cord	open ready to wire into electricity
Start mode	Card swipe / APP / Plug & play
Station size	L250xW250xH90 (mm)
Warranty	2 years (both cable and station)
lead time	30-35 days after deposit payment
Payment Terms	T/T(30% advanced payment ,the rest 70% balance should be paid before shippment)
Electrical Protection	Over current protection, Residual current protection, Ground protection, Surge protection Over/Under voltage protection, Over/Under frequency protection, Over temp protection
Materials Applied	Shell: by thermoplastic PC 94V-0. Anti-corrosion and abrasion protection. Cable: 5.0M in black with TPU jacket. With CE issued by TUV and TUV mark.
Customizing Logo	Logo put on shell by laser on station box or cable head
Package	Each in inner carton box, then 1 inner carton into 1 master carton
Certificates & QC	CE(ICR lab), UKCA, RoHS , ISO, ETL, FCC, Energy Star, UL(Cable)
Features	RCD protection: Type B(30mAAC/CCID20+6mADC) Charging status and working error displayed by LED indicators.

XTECK Smart AC EV Charger

XTECK Smart AC EV Charger compatible with most global EVs. It supports 7kW/11kW/22kW adjustable power options to meet diverse charging demands. Featured with IP65 protection and 9-fold safety system, it works well indoors and outdoors. Multiple operation modes (APP, RFID, plug-and-play), intelligent power control and remote monitoring are available. Compact design supports wall & floor installation, low power consumption and long service life. Perfect for home, office, mall, hotel and public parking use.

Product Highlights | Wallbox EV Charger

✅ More Power Options, Global Compatibility

7kW & 11kW & 22kW for choice, compatible with mainstream EVs in Asia & Europe, supports 50/60Hz global power grid.

✅ High-level Safety for All-weather Use

IP65 dustproof & waterproof, UV-resistant shell and 9-layer electrical protection, stable operation under all harsh outdoor conditions.

✅ Full Intelligent Control & Easy Management

Remote APP control, RFID access and multiple billing modes. Supports mainstream communication protocols for commercial centralized management.

✅ Flexible Installation & Energy Saving

Wall-mounted & floor-standing optional for all spaces. Only 5W standby power, energy-efficient and long service life.

✅ User-friendly Operation

Plug-and-play design with mainstream overseas payment methods, easy to use for all people, ideal for home and commercial use.

Applicable Scenes of Single-Gun Smart AC Wall-Mounted EV Charger

1. Residential Home EV Charging

Designed for private homeowners with a single electric vehicle, this wall charger delivers stable, worry-free at-home charging performance. Its compact structure saves garage space, while high charging power drastically cuts charging time. It is the top charging solution for private parking bays in apartments, residential compounds and villas.

2. Workplace & Factory EV Charging

It can be mounted in office buildings and factory staff parking lots. Employees can fully recharge their EVs during working hours, which reduces staff commuting expenses and optimizes corporate supporting facilities.

3. Public EV Charging

Compatible with roadside parking zones, public parking lots, shopping mall underground garages and shared community parking spots. It offers convenient power replenishment for EV owners when they travel, go shopping or head out.

4. Commercial Fleet EV Charging

Ideal for enterprises operating electric fleets including delivery vans and corporate shuttle vehicles. Equipped with 7kW, 11kW and 12kW high charging power modes, it minimizes vehicle idle charging time, improves fleet dispatch rate and boosts overall operational efficiency.

This single-gun smart AC wall box EV charger features complete functions, stable operation and long service life, compatible with almost all mainstream electric vehicle models on the market. Widely applied to household private charging, corporate workplace charging, public parking charging and commercial fleet charging projects, it brings cost-effective, durable and reliable long-term charging experience for both individual EV owners and all types of businesses.
