IEC 62196-6 Charging Gun Fast Charging Connector For Electric Vehicles

Name: IEC 62196-6 Charging Gun Fast Charging Connector For Electric Vehicles
Brand: XTECK NEW ENERGY TECHNOLOGY CO., LTD.
Price: 200 USD
Availability: InStock

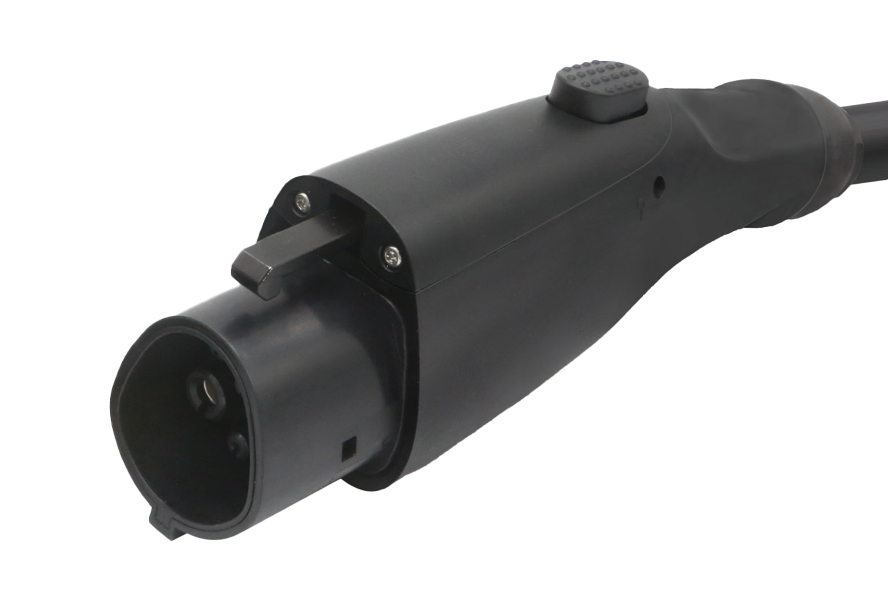

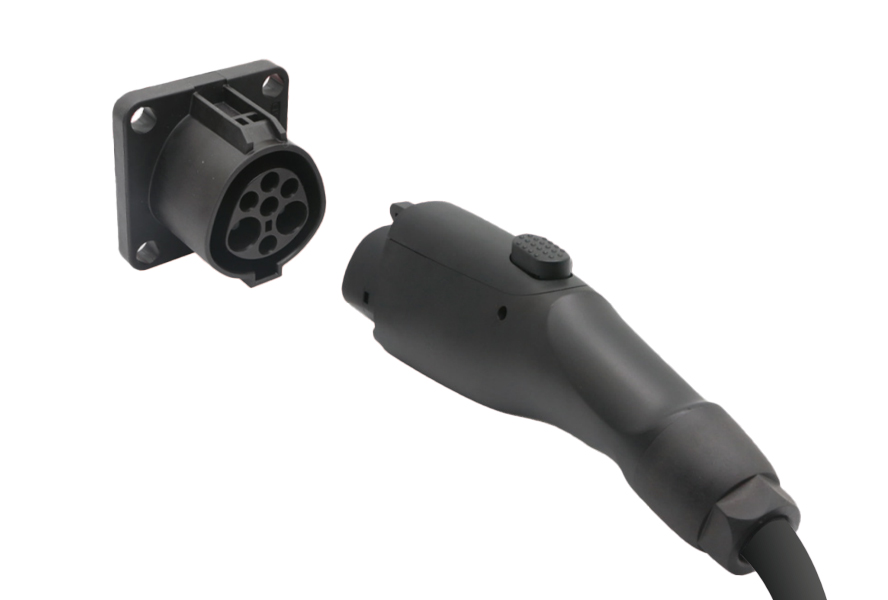

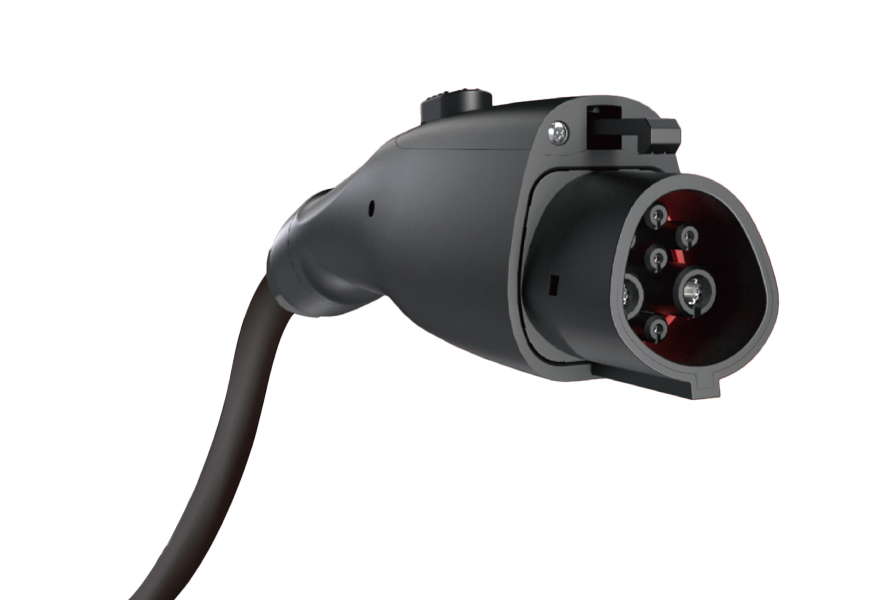

The IEC 62196-6 (Dash-6) Charging Gun is a high-performance single-phase AC charging connector compliant with the broader International Electrotechnical Commission IEC 62196 family of standards. Often referred to in the industry as a Type 6 charging gun, this charging gun is specifically designed for Electric Vehicles (EVs) requiring a reliable connection interface. As a specialized Type 6 charging connector, it features a compact and durable structure that makes it ideal for home, commercial, and specialized industrial charging applications.

Contact Us

Technical Information of IEC 62196-6 Charging Gun Fast Charging Type 6 Connector For Electric Vehicles

Technical Information
Specification
Standard	IEC 62196-6 (Dash-6)
Charging Type	AC Charging (Single-Phase)
Rated Voltage	250V AC
Rated Current	16A / 32A (common variants)
Power Output	3.7kW (16A) / 7.4kW (32A)
Frequency	50/60Hz
Insulation Resistance	≥10MΩ (500V DC)
Withstand Voltage	2000V AC (1 minute)
Mechanical Specifications
Number of Pins	5 (L/N/PE + 2 communication pins)
Housing Material	High-grade thermoplastic (UL94 V-0)
Mating Cycles	≥10,000 insertions
Environmental Ratings
IP Rating	IP54 (standard) / IP67 (optional)
Operating Temperature	-30°C to +50°C
Storage Temperature	-40°C to +85°C
Relative Humidity	5% to 95% (non-condensing)
Altitude	≤2000m above sea level

Functionality Introduction of IEC 62196 Type 6 Charging Connector For Electric Vehicles

IEC 62196 Type 6 Charging Gun/Connector Key Features:

Standard Compliance: Fully certified to IEC 62196-6 and compatible with IEC 61851-1 communication protocols

IEC 62196 Type 6 Charging Gun/Connector Robust Design:

IP54/IP67-rated housing for dust/water resistance

High-durability contacts (≥10,000 mating cycles)

Mechanical/electronic locking options

Safety-Centric: Integrated protection for overcurrent, short-circuit, and ground faults

Global Adaptability: Originally adopted in select Asian markets, with cross-compatibility to regional standards

IEC 62196 Type 6 Charging Gun/Connector Technical Highlights:

Pins: L/N/PE + CP (Control Pilot) + PP (Proximity Detection)

Cable Options: 16A (3×2.5mm²) or 32A (3×6mm²) copper cores

Smart Communication: PWM-based charging control (IEC 61851-1)

IEC 62196 Type 6 Charging Gun/Connector Typical Applications:

Home wallboxes

Fleet charging stations

Early-generation EV models
