CCS2 to CHAdeMO Adapter 1000V 250A Fast CCS2 Charger Connector Compatible for Nissan Leaf Chademo Car

Name: CCS2 to CHAdeMO Adapter 1000V 250A Fast CCS2 Charger Connector Compatible for Nissan Leaf Chademo Car
Brand: XTECK NEW ENERGY TECHNOLOGY CO., LTD.
Price: 200 USD
Availability: InStock

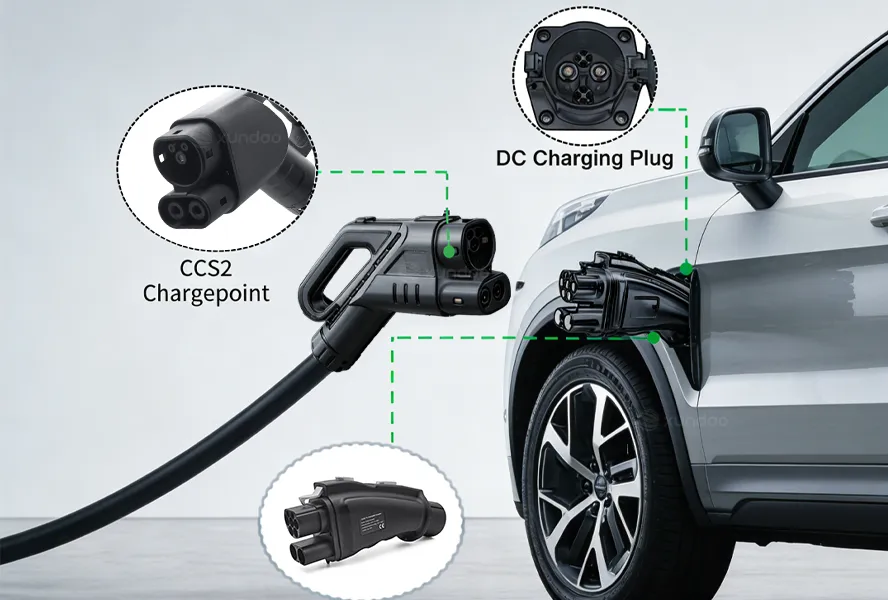

XTECK's CCS2 to CHAdeMO Adapter is a professional DC fast charging converter, solving incompatibility between CHAdeMO EVs (e.g., Nissan Leaf, Mitsubishi i-MiEV) and CCS2 charging stations. As a trusted foreign trade supplier, we provide high-quality adapters bridging European/Chinese CCS2 and Japanese CHAdeMO standards.

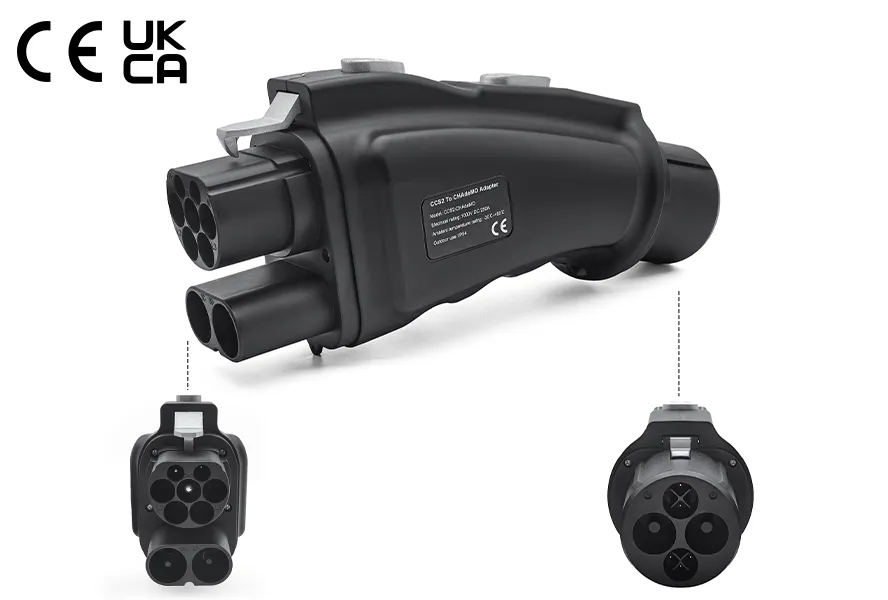

It has a CCS2 female connector (IEC 62196-3 DC compatible) and CHAdeMO male connector, working with Tesla Superchargers, ABB. Supporting 1000V DC, up to 250A peak current and 250kW max power, it’s IP54/IP55 protected, flame-retardant, with over-voltage/over-current/over-heat protection. Portable (1.9–4.5kg), plug-and-play, CE/RoHS certified, we offer wholesale prices and technical support for global customers.

Contact Us

Specifications of CCS2 to CHAdeMO Adapter 1000V 250A Fast CCS2 Charger Connector Compatible for Nissan Leaf Chademo Car

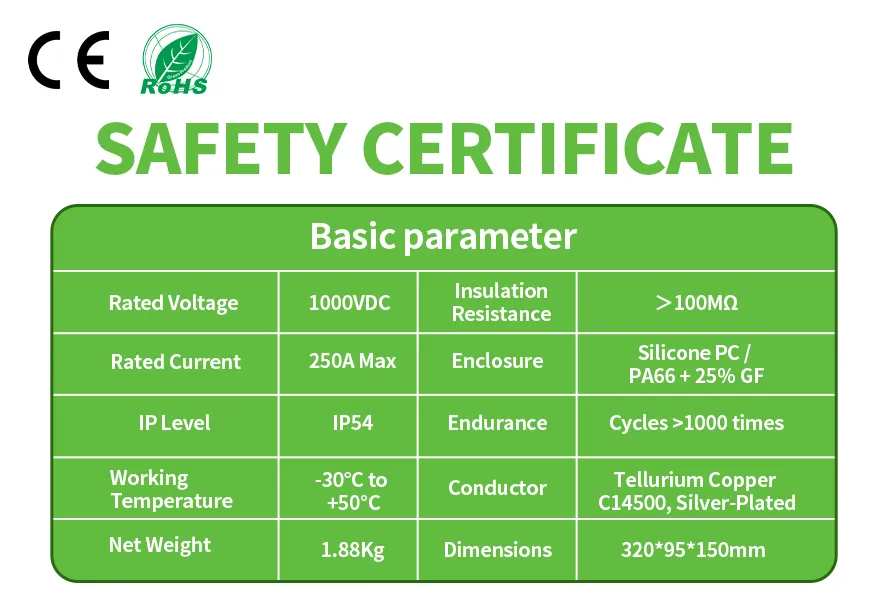

Product Specification
Model	CCS2-CHAdeMO Adapter
Rated Current	250A
Rated Voltage	1000VDC
Rated Current	250A Max
IP Level	IP54
Flammability Rating	UL94V-0
Working Temperature	-30°C to+50°C
Contact Resistance	>1000MQ
Casing Material	Thermoplastic Material
Terminal Material	Copper Alloy,Silver Plated
Endurance	Cycles >1000 times

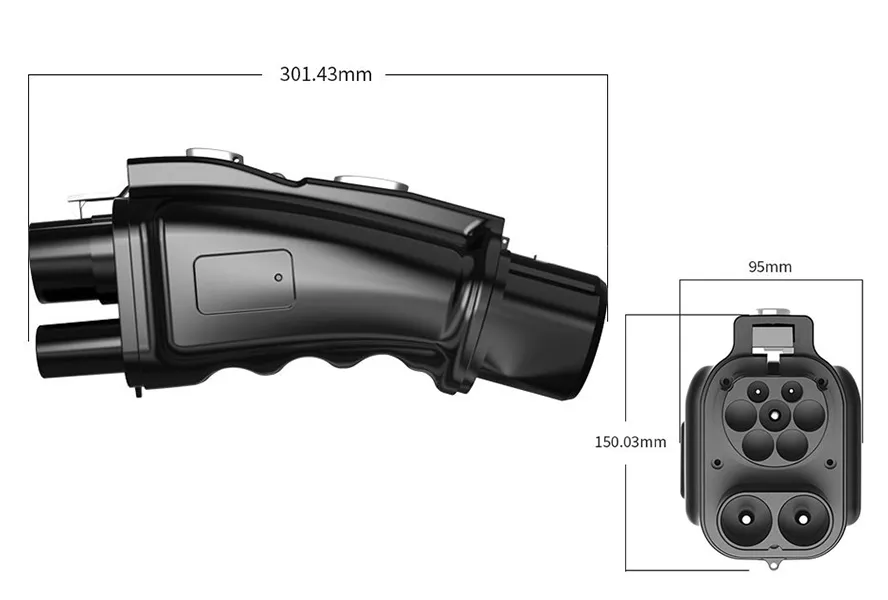

Dimensions	32095150mm
Net Weight	1.88Kg
External Package	Carton
Certification	CE/ RoHS

Product Description

CCS2 to CHAdeMO EV Adapter

Power : Rated for up to 250KW.

Rated Current : 250A DC

Shell Material : PC+ABS (Insulator inflammability UL94 V0)

Operating Temperature: -30°C to 50°C.

Storage Temperature : -30°C to 85°C

Rated Voltage: 500~1000V.DC

Security : single Temp. kill switch. Charging stops when adapter reach to 90°C

Certification: CE

Degree of protection : IP54

250kW Electric Vehicle Adapter | CCS2 to CHAdeMO DC Fast Charger | 1000V 250A | Nissan Leaf

✅ Waterproof design: With excellent waterproof performance, it can work normally even in harsh weather conditions.

✅ Efficient Fast Charging: Equipped with fast charging function, significantly reducing charging time and making travel preparation more efficient.

✅ Convenient operation: The operation panel is simple and intuitive, the charging status is clearly displayed, and one click operation is convenient and easy to use.

✅ Efficient heat dissipation: Efficiently dissipate charging heat, maintain low-temperature operation, avoid overheating and speed reduction, and continuously provide strong charging performance CCS2 TO CHAdeMO Adapter，250A CCS2 DC EV Charger Connector Electric Vehicle Charging Station 1000V Chademo Car.

CCS2 to CHAdeMO Adapter | Product Details & Specifications

Welcome to the product details page of our CCS2 to CHAdeMO Adapter—your ultimate solution to expand charging options for CHAdeMO-equipped electric vehicles (EVs). Designed to bridge the gap between CCS2 and CHAdeMO charging standards, this adapter delivers reliable performance, robust safety, and wide compatibility, making it a must-have accessory for EV owners worldwide. Below is a comprehensive breakdown of its key features, specifications, and usage notes to help you make an informed purchase.

1.Product Overview

Our CCS2 to CHAdeMO Adapter is engineered to solve the charging compatibility problem for EVs with a CHAdeMO port. Whether you’re commuting daily or traveling long distances, this adapter allows you to seamlessly connect to CCS2 charging stations, eliminating the hassle of limited charging access. With high-performance DC fast charging support, durable construction, and advanced functionality, it’s designed to meet the needs of modern EV users.

2.Compatibility

This CCS2 to CHAdeMO Adapter is fully compatible with all electric vehicles that feature a CHAdeMO charging port. Popular compatible models include: Nissan Leaf, Mitsubishi i-MiEV, Mitsubishi Outlander PHEV, Citroën C-Zero, and Peugeot iOn. It works seamlessly with most CCS2 charging networks, ensuring you can charge your EV wherever CCS2 stations are available—expanding your charging options significantly.

3.Performance & Specifications

Equipped with high-performance DC fast charging capability, this adapter supports a maximum current of 250A and a maximum voltage of 1000V, enabling efficient energy transfer and rapid charging for your CHAdeMO EV. Unlike low-quality adapters that compromise charging speed, our adapter maintains optimal power delivery, reducing charging time and getting you back on the road faster. It’s suitable for both daily charging and emergency use scenarios.

4.Functionality

Built-in internal software enables seamless translation between CCS2 and CHAdeMO charging protocols, ensuring a stable and reliable connection every time you charge. To enhance long-term reliability and adaptability, select models (including those recommended by EV communities like Reddit) support firmware updates. This allows you to fix compatibility bugs, improve performance, and keep up with the latest charging station technologies.

5.Design & Safety

Crafted with durability and safety in mind, the adapter is made of high-quality, fireproof ABS+PC materials that resist heat, impact, and wear. It features an IP54 protection rating, making it dust-resistant and protected against splashing water—suitable for outdoor use in various weather conditions, including rain, snow, and dusty environments. The rugged design ensures long-lasting performance even in harsh charging conditions.
