Evse Home Wallbox Level 2 Fast Charging Station 7kw 11KW 22KW 16A 32A Type 2 Type 1 EV Charger With Screen

Name: Evse Home Wallbox Level 2 Fast Charging Station 7kw 11KW 22KW 16A 32A Type 2 Type 1 EV Charger With Screen
Brand: XTECK NEW ENERGY TECHNOLOGY CO., LTD.
Price: 200 USD
Availability: InStock

This simple wallbox has two types—Charging Cable Type and Socket Type—based on how EVs connect. It offers an optional colorful LCD display, letting users clearly check real-time charging status like time, voltage, current, and internal temperature.

It can automatically fix non-hardware faults during charging; faults needing manual repair show on the LCD screen. With a sturdy housing and IP65 rating, it’s easy to wall-mount. We also provide matching stands for those preferring stand installation.

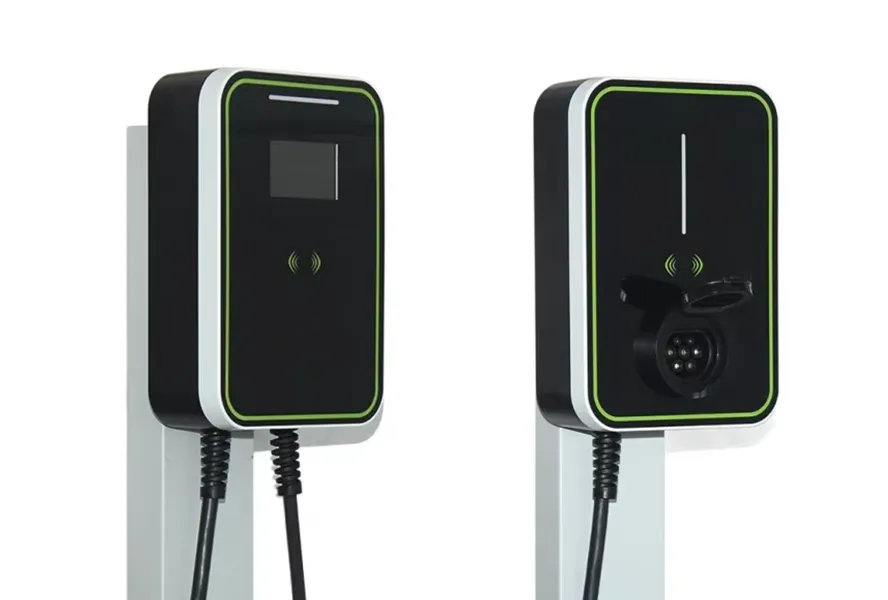

Evse Home Wallbox Level 2 Fast Charging Station 7kw 11KW 22KW 16A 32A Type 2 Type 1 EV Charger With Screen 1

Contact Us

Specifications of Evse Home Wallbox Level 2 Fast Charging Station 7kw 11KW 22KW 16A 32A Type 2 Type 1 EV Charger With Screen

Technical Information
Standard	GBT	Type 2	Type 1
Rated power	7kW/11KW/22KW	7kW/11KW/22KW	7.6kW/12KW
Rated output current	16A/32A	16A/32A	16A/32A/50A
Input Voltage Range	220VA ± 20% (1-phase)	230VA ± 20% (1-phase)	120VA ± 20% (LEVEL 1)
Output Voltage Range	380VA ± 20%(3-phase)	400VA ± 20%(3-phase)	240VA ± 20%(LEVEL 2)
Charging interface	IEC 61851、GB/T 20234、GB/T 18487-2015, GB/T 20234-2015		SAE J1772
Working Frequency	45/65 Hz
Networking method	4G/WIFI/LAN
Bluetooth	NA	Yes	Optional
Control mode	Plug and Charge/APP control / RFID card/OCPP1.6 J (QR code / RFID)
IP grade	≥ IP65
Working Temperature	-40℃～ +60℃
Working Humidity	5%-95% Non-condensing
Special Protection	UV resistance
Working altitude	≤ 2000m
Operating instructions	On-screen display / Buzzer
Status indication	On-screen display /LED breathing light
Application Scenario	Outdoor indoor parking and charging
Weight	<7 kg		<8 kg
Dimension	238mm x 95mm x 348mm

Features of Evse Home Wallbox Level 2 Fast Charging Station 7kw 11KW 22KW 16A 32A Type 2 Type 1 EV Charger With Screen- High strength thermoplastic housing, flame retardant and impact resistance.

- The charging plug is ergonomically designed for a beautiful, comfortable grip and easy to use the product.

- The charging cable is made of high-quality TPU and copper and is resistant to low temperatures, oil and abrasion.

- The EVSE is controlled via mobile phone and is optimised for different languages. 60 different languages are supported by the APP, which automatically switches with the language of the mobile phone system.

- Home load balancing strategy to automatically adjust the charging current of the EVSE and protect the home electrical circuit.

- Support for commercial OCPP 1.6, which transfers information about the operation of the device to your back office and allows you to manage hundreds of EV charger stations simultaneously.

Applicable Scenes of Evse Home Wallbox Level 2 Fast Charging Station 7kw 11KW 22KW 16A 32A Type 2 Type 1 EV Charger With Screen

★Residential Charging: Ideal for single-EV homeowners needing reliable, convenient home charging. Its compact design and high power make it a top home choice.

★Workplace Charging: Suitable for offices, factories, etc., offering employees easy EV charging during work hours.

★Public Charging: Installable in roadside areas, public parking lots, providing on-the-go EV owners a handy charging option.

★Fleet Charging: Benefits businesses with EV fleets. Boasting 7KW and 22KW high power, it quickly charges vehicles to keep fleets operational and productive.

Overall, this single-gun smart AC EV wall box charger is a versatile, reliable solution for diverse uses—an excellent investment for EV owners and businesses.

Customer Service of Evse Home Wallbox Level 2 Fast Charging Station 7kw 11KW 22KW 16A 32A Type 2 Type 1 EV Charger With Screen

✅We can provide customers with professional product advice and purchase options.

✅All emails will be responded within 24 hours during working days.

✅We have online customer service in different languages, You can communicate with us online, or contact us through email anytime.

✅All customers will get one-on-one service

Delivery Time

✅Samples or test orders can be delivered within 3-7 working days.

✅ Orders in standard products above 100pcs could be delivered within 10-15 working days(Excluding stocked products).

✅Orders that require customization could be produced within 25-35 working days.

✅We offer spare parts services to meet some market demands. Each customer has diverse product requirements, which will be finally evaluated based on the customer's actual product situation.

Customized service

We provide flexible customized services with our abundant experiences in kinds of OEM and ODM projects

✅OEM includes color, length, logo, packaging, etc. ODM includes product appearance design, function setting, new product development, etc.

✅MOQ is depend on different customized requests.

The Agency Policy

✅Please contact our sales department for more details.

After Sale service

✅The warranty of all our products is one or two years. The specific after-sale plan will be free for replacement or charging a certain maintenance cost according to the specific situations.

✅However, according to the feedback from markets, we seldom have after-sale problems because strict product inspections are carried out before leaving the factory. And all of our products are certificated by top testing institutions such as CE from EU, Providing safe and guaranteed products is always one of our greatest strengths.
