Commercial Ues 14kW 22kW 44kW Floor Standing AC EV Charger With Dual Gun

Name: Commercial Ues 14kW 22kW 44kW Floor Standing AC EV Charger With Dual Gun
Brand: XTECK NEW ENERGY TECHNOLOGY CO., LTD.
Price: 200 USD
Availability: InStock

Enhance your EV charging infrastructure with our high-performance dual-gun AC chargers (14kW, 22kW, 44kW). A reliable, efficient choice for EV owners, they deliver fast, simultaneous charging with user-friendly operation.

Crafted with a carbon steel casing and IP55 rating, these chargers are waterproof, dustproof, and UV-resistant—perfect for harsh outdoor use. They perform reliably in extreme temperatures (-40°C to +60°C), enduring tough weather conditions.

Their contactor-based, modular design simplifies maintenance and replacements, helping lower operational costs.

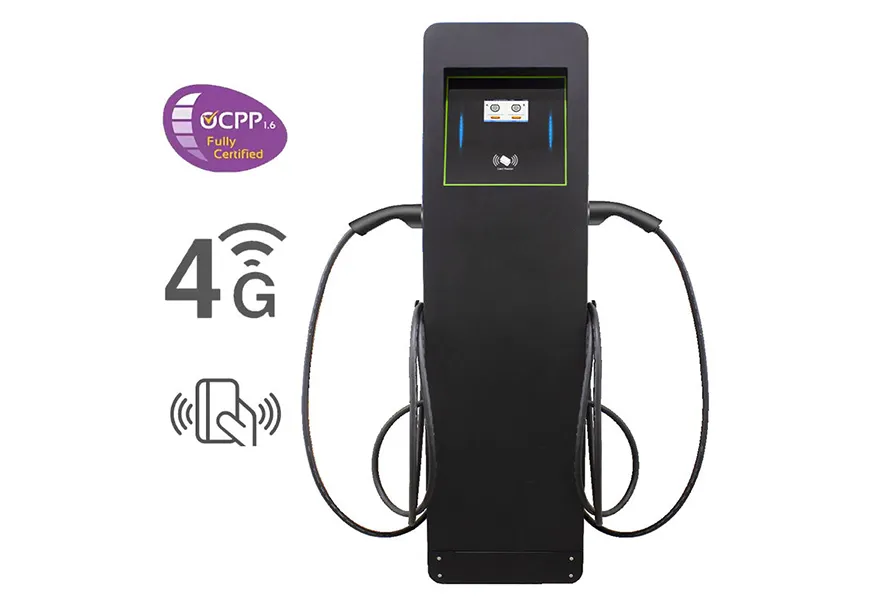

commercial ues 14kw 22kw 44kw floor standing ac ev charger with dual gun 1

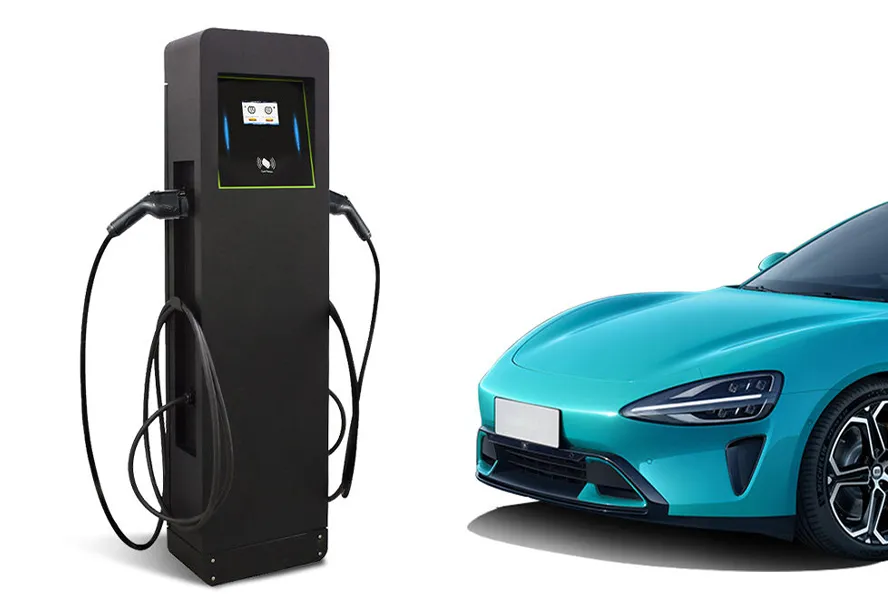

commercial ues 14kw 22kw 44kw floor standing ac ev charger with dual gun 2

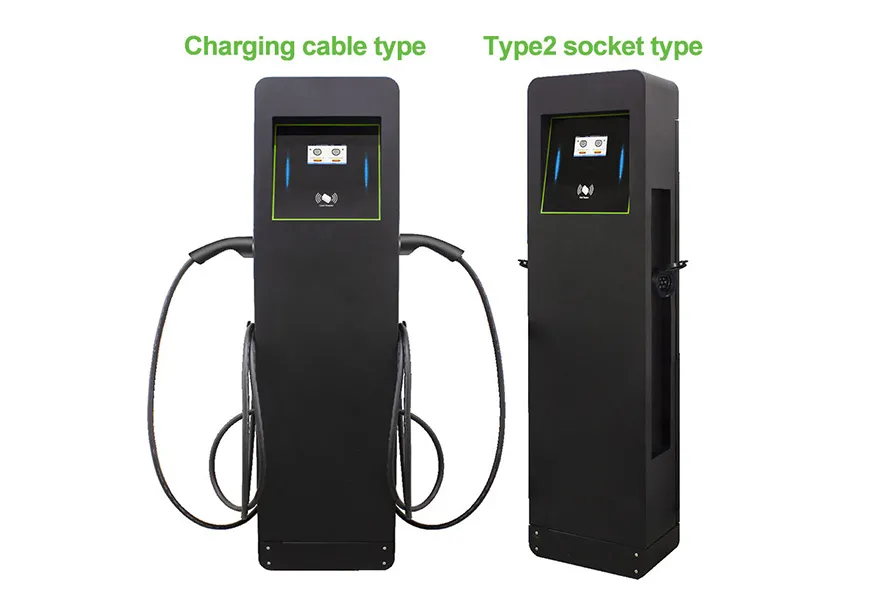

commercial ues 14kw 22kw 44kw floor standing ac ev charger with dual gun 3

Contact Us

Specifications of Commercial Ues 14kW 22kW 44kW Floor Standing AC EV Charger With Dual Gun

Technical Information
Standard	CCS2 /CCS 1/GBT
Rated power	7kW+7kW / 11kW+11kW / 22kW+22kW
Rated output current	16A/32A
Input Voltage Range	220VA ± 20% (1-phase) / 380VA ± 20%(3-phase)
Output Voltage Range	220VA ± 20% (1-phase) / 380VA ± 20%(3-phase)
Charging interface	IEC 61851、GB/T 20234、GB/T 18487-2015, GB/T 20234-2015
Working Frequency	45-65 Hz
Networking method	4G/WIFI/LAN
Bluetooth	NA
Control mode	OCPP1.6 J (QR code / RFID)
IP grade	≥ IP55
Working Temperature	-40℃～ +60℃
Working Humidity	5%-95% Non-condensing
Special Protection	UV resistance
Working altitude	≤ 2000m
Cooling mode	Natural cooling
MTBF	≥ 100000H
Standby power	3W/5W (With LCD)
Operating instructions	On-screen display / Buzzer
Status indication	On-screen display /LED breathing light
Application Scenario	Outdoor indoor parking and charging
Weight	<46.3kg
Dimension	1500(H)mm x 400(W)mm x 230(D)mm

Product Descriptions of Commercial Ues 14kW 22kW 44kW Floor Standing AC EV Charger With Dual Gun

●High Power Output: Available in 14kW, 22kW, and 44kW options for fast charging of various vehicles.

●Multi-Interface Compatibility: Supports Type 1, Type 2, and GB/T connectors, suitable for global markets.

●Commercial Operation Features: OCPP 1.6 protocol support, POS system, and multiple payment methods (VISA, MasterCard, Apple Pay, Google Pay, PayPal).

●Durable Design: Carbon steel casing with IP55 rating, waterproof, dustproof, UV-resistant, and operates in extreme temperatures (-40°C to +60°C).

●High Safety Standards: Includes protection against over-temperature, overload, over-voltage, under-voltage, short circuits, and leakage.

●Smart Control and Monitoring: 4G, WiFi, and LAN connectivity for remote monitoring and adjustable charging currents via OCPP platform.

●User-Friendly Operation: 5-inch touchscreen and LED indicators for intuitive charging status and easy operation.

●Wide Range of Applications: Ideal for both indoor and outdoor charging locations, supporting simultaneous charging for multiple vehicles.

●Modular Design: Easy maintenance with a contactor-based, modular design to reduce operational costs.

Applicable Scenes of Commercial Ues 14kW 22kW 44kW Floor Standing AC EV Charger With Dual Gun

1.Residential Charging: Ideal for single EV owners, this 44kW EV charger combines a compact design with high-power charging, offering reliable, convenient home charging.

2.Workplace Charging: As a 2×22kW dual-gun station, it fits offices or factories, letting employees charge their EVs effortlessly during work hours.

3.Public Charging: Suitable for road-side spots or public parking lots, it provides on-the-go EV owners with easy access to fast charging.

4.Fleet Charging: Perfect for businesses with EV fleets. Supporting 7kW/11kW/22kW/44kW, it charges vehicles quickly to keep fleets operational and productive.

Overall, this dual-gun smart 44kW AC wallbox charger is a versatile, reliable solution for both individual EV owners and businesses—an excellent investment for diverse charging needs.
