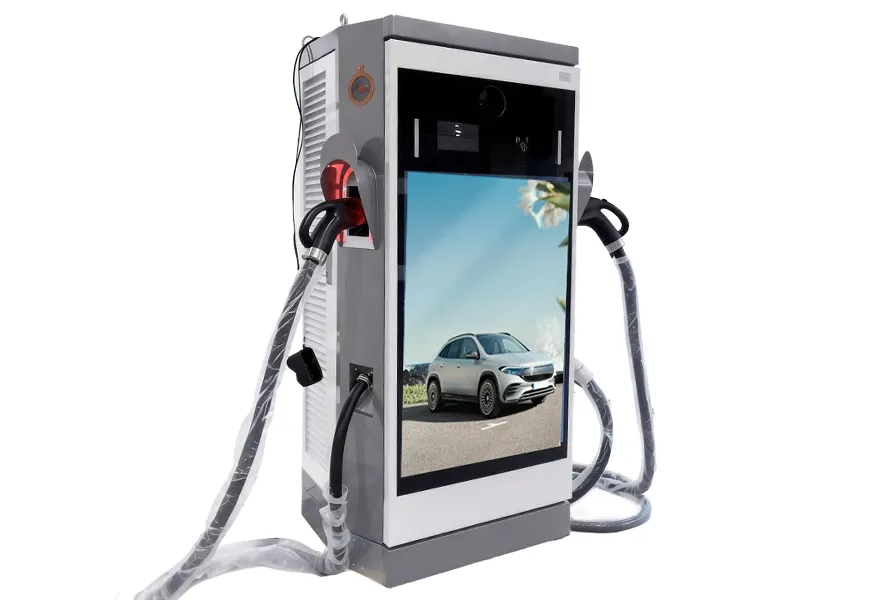

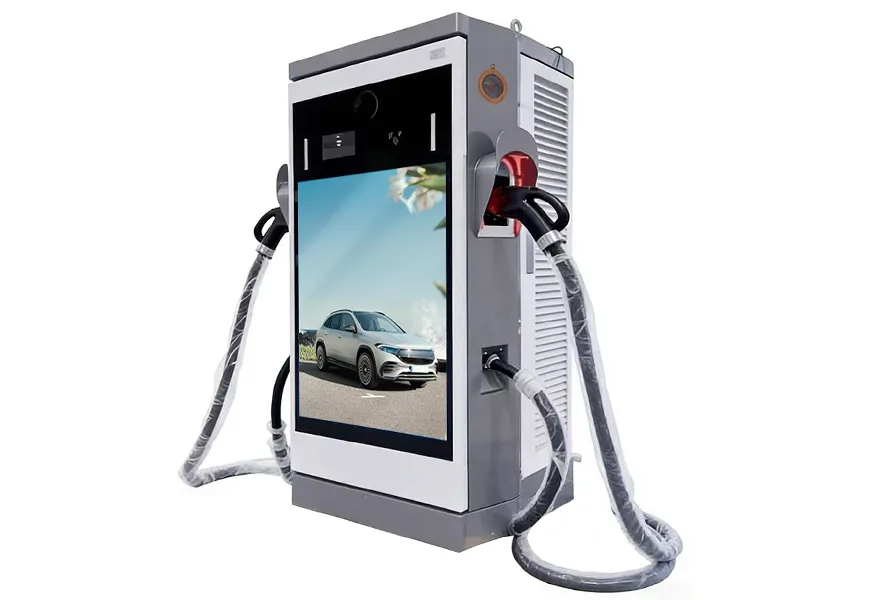

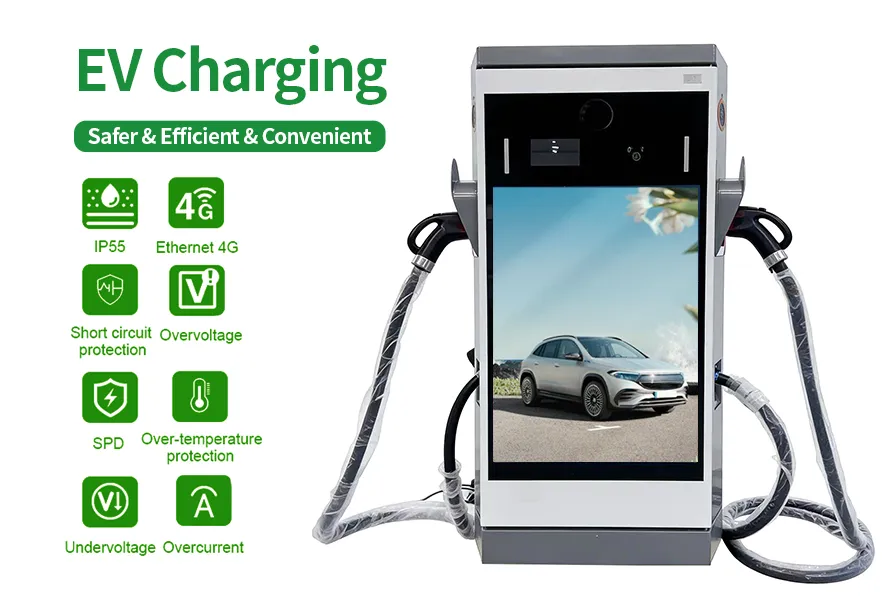

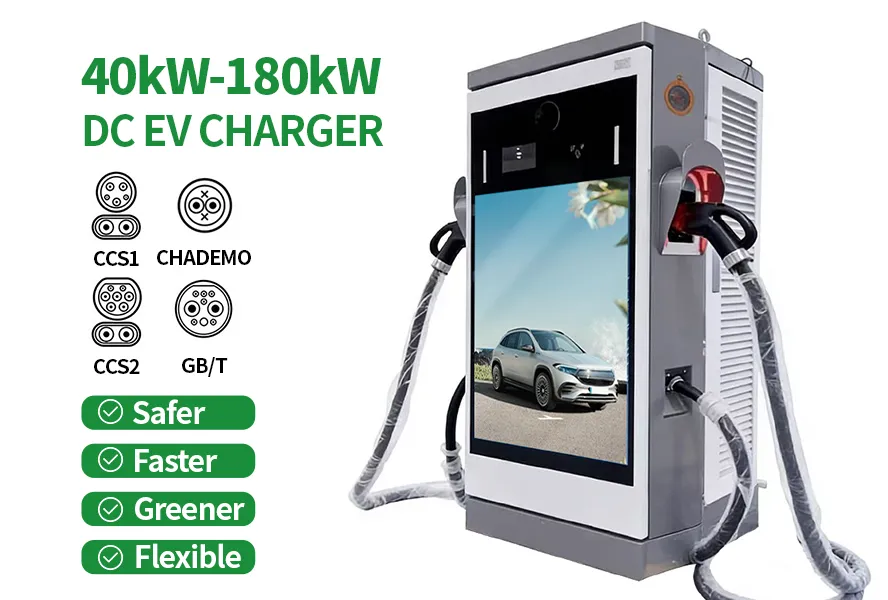

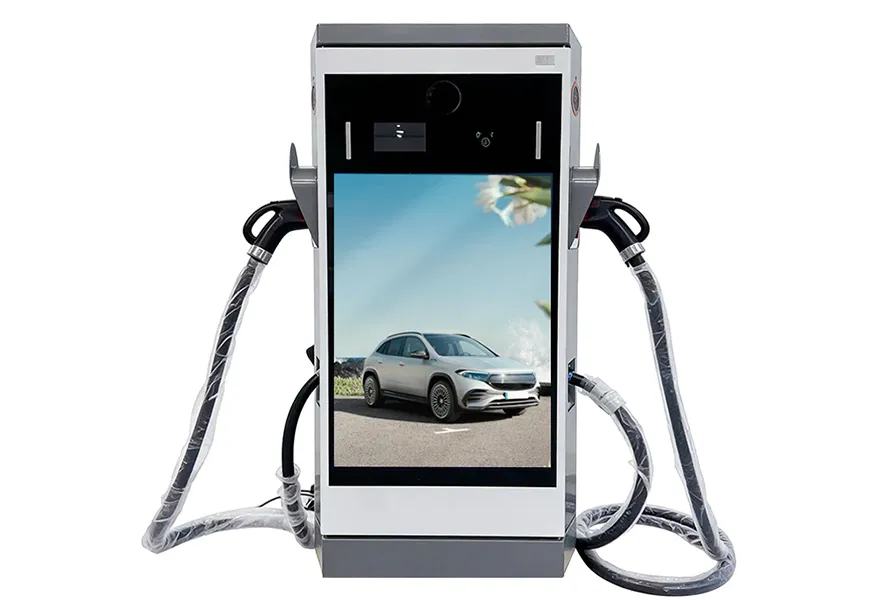

120kW 160kW 180kW Dual Gun DC Fast Charging Station With 55inch Advertising Screen

The 55-Inch Advertising DC EV Charger perfectly integrates high-speed DC fast charging and commercial advertising display in one unit. It helps business owners upgrade user charging experience, increase customer flow and generate stable additional advertising revenue. Contact us now for more specifications and customized solutions.

Specification of 120kW 160kW 180kW Dual Gun DC Fast Charging Station With 55inch Advertising Screen

Product Specification
Rated Power60kW80kW120kW160kW180kW
Basic FunctionsSwipe Card、APP、OCPP、Load Balancing (optional feature)
Input Voltage285-475V
Output Voltage200Vdc~1000Vdc
Output Current0-250A
Input Curent105A130A200A270A300A
Package Weight255261296.5358358
Product Size1700*730*5001840*795*5701840*795*570

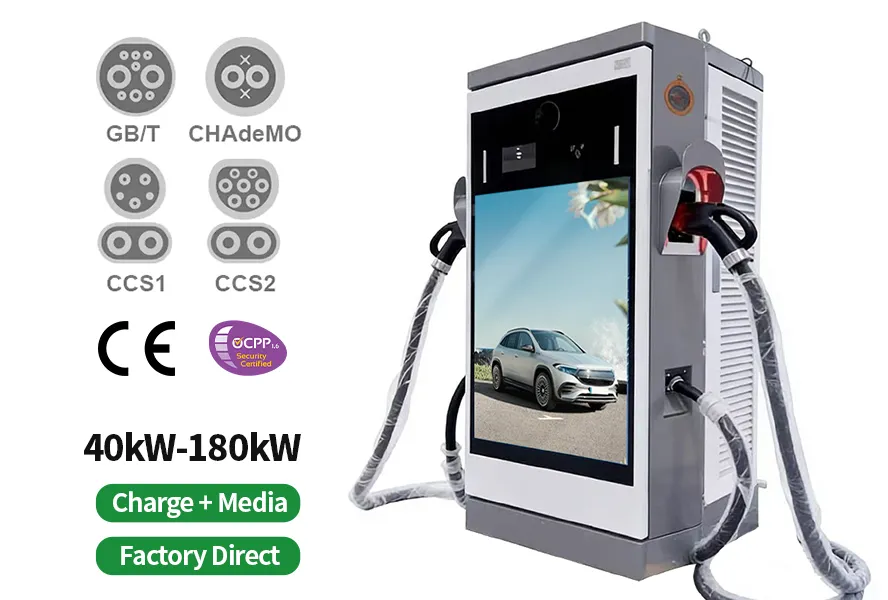

Charge ConnectorCCS1/CCS2/CHAdeMO
Cabke Lengt5M(Acceptable customization)
EnclosureGalvanized steel
LED IndicatorGreen/Mellow/Red
LCD Display43 inch / 55 inch LCD screen
Charging ProtocolGBT27930 / CHADEMO 2.0 / DIN 70121 OCPP 1.6(JSON) / ISO 15118
Emergency StopYes
Interface LangugeEnglish/Chinese
WIFiOptional
EthemetYes
3G/4GYes
0CPPOCPP 1.6Json (OCPP 2.0 optional)
RCDType A
Ingress ProtectionIP55
CertificationCE、RoHS
Waranty2 years
InstallationFoor-stand
Cooling MethodFan coding
Work Temperature-25℃ +55℃
Work Humidity5%-95%


Commercial Advertising DC EV Charger - All-in-One Fast Charging & Display Solution

This innovative EV charging station combines high-efficiency DC fast charging with premium digital advertising, ideal for outdoor commercial installation.

Featured with a 55-inch high-brightness advertising screen, it delivers vivid HD visuals with strong visual impact, clearly visible day and night. It builds a high-traffic brand promotion platform without extra advertising investment, accurately attracting pedestrians and vehicles.

Available in 60kW, 90kW, 120kW, 160kW and 180kW power options, the dual-plug design supports simultaneous charging for two electric vehicles. It flexibly plays brand promotions and commercial ads, creating dual revenue from EV charging and digital advertising.

Perfect for shopping malls, gas stations and public parking lots, this multifunctional DC charging station provides reliable fast charging service while boosting brand exposure. It maximizes equipment utilization and brings stable extra profits for operators.


Additional Benefits for Operators

(1)Advertising Revenue Stream

Beyond core charging service fees, this EV charging station unlocks new revenue potential through targeted digital advertising. Businesses can showcase products, services, and promotional campaigns directly to captive EV drivers, turning every charging session into a valuable marketing opportunity and creating a profitable, dual-income business model.

(2)Enhanced Brand Visibility & Exposure

The built-in high-definition advertising display delivers high-visibility brand promotion to both drivers and pedestrians. It increases brand recognition among high-traffic audiences, making it an ideal solution for businesses aiming to boost local brand presence and customer engagement.

(3)Higher Charging Station Utilization & Profitability

By combining reliable DC fast charging services with engaging digital content, the station becomes more attractive to EV users. This drives higher foot traffic, increased usage rates, and improved overall profitability for charging network operators.


Unlike standard DC fast chargers that only offer basic charging services, our advertising-enabled DC charger unlocks dual revenue potential for operators. It combines reliable high-speed charging with a built-in high-definition display, allowing you to monetize every charging session through targeted digital advertising.

This dual-function design not only increases foot traffic and station utilization but also strengthens your brand image with a modern, eye-catching presence. The result is a shorter ROI period, higher profitability, and greater long-term value for commercial and public charging sites.

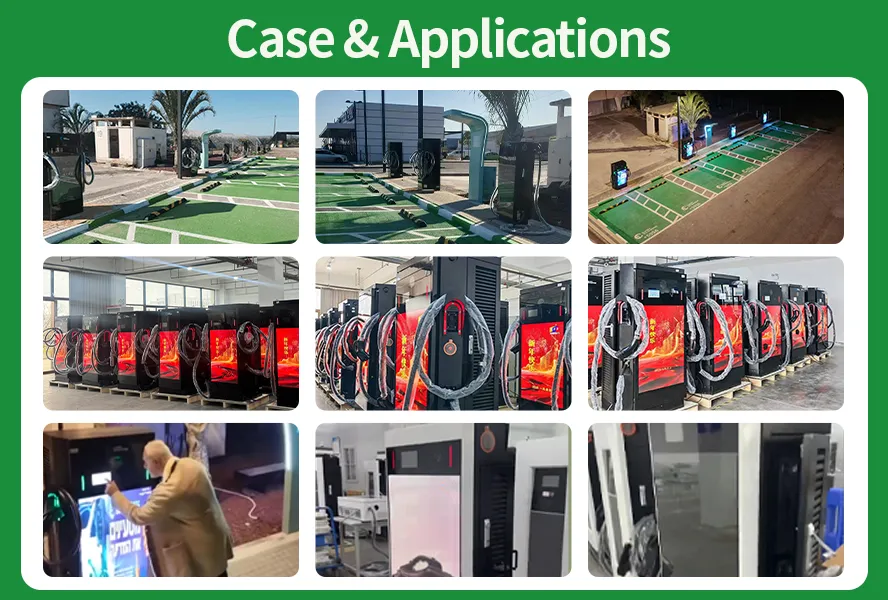

Ideal Locations:

1. Commercial Complexes & Shopping Malls

Attract EV-driving customers to on-site consumption while unlocking valuable advertising space for brand partnerships and promotions.

2. Transportation Hubs (Highway Service Areas / High-Speed Railway Stations)

Provide reliable fast charging for long-distance travelers while enabling high-exposure advertising campaigns to reach a large, captive audience.

3. Residential Communities & Office Parks

Meet daily commuting charging needs for residents and employees, while elevating the property’s tech-forward image with modern, user-friendly charging infrastructure.

4. Public Charging Stations

Combine public welfare messaging and commercial advertising opportunities, creating a win-win model that delivers essential charging services while generating additional revenue streams.


Features of Commercial Advertising DC EV Charging Station

1.Multi-Standard Charging Gun Support

Equipped with high-voltage charging guns for European standard, American standard and Japanese standard. Custom charging configurations are available to meet personalized project and site requirements.


2.Flexible Modular Design

Adopts professional modular structure design, allowing flexible configuration and easy adjustment to match diverse customer application needs.


3.OCPP Standard Communication Protocol

Fully compliant with OCPP communication protocol, seamlessly compatible with mainstream charging management systems for easy platform docking and remote operation.


4.Open Cloud Management & Data Platform

Supports open and shareable data service platform and cloud-based charging station management system, realizing remote monitoring, data statistics and unified operational management.


5.Comprehensive Multi-Layer Safety Protection

Built with complete protection functions including input undervoltage, input overvoltage, output short circuit, output overvoltage, output overcurrent, battery reverse connection, insulation detection and communication fault protection.


6.External Real-Time Operation Indicator

Comes with external running status indicator lights to display real-time working status, fault alerts and charging progress clearly at a glance.


7.Wide Grid Adaptation & Special Power Input

Features wide AC voltage output range and strong grid compatibility. The rectifier unit supports three-phase three-wire input without neutral line, suitable for various power supply environments.


8.Automatic Charging Protocol Recognition

Integrates intelligent protocol self-recognition technology, supporting universal EV charging without brand restrictions for most electric vehicles on the market.


9.Dual Compatibility for Cars & Coaches

Compatible with charging for both passenger cars and electric coaches, ideal for parking lots, bus stations and fleet charging depots.


10.Multi-Vehicle Automatic Rotational Charging

Supports one pile for multiple vehicles with automatic rotational charging by power allocation and time scheduling. It automatically detects full battery status, and can serve at least 5 vehicles overnight in turn.


11.Emergency Protection & Fault Alarm System

Built-in emergency protection and alarm functions for overvoltage, undervoltage, overcurrent, overtemperature, phase loss, output short circuit and electric leakage.


12.Intelligent Charging Safety Lock

Automatically suspends charging once BMS communication failure, line disconnection, overtemperature or overvoltage is detected, ensuring full-process charging safety.


13.Physical Emergency Stop Button

Equipped with dedicated emergency stop switch to instantly cut off the charging output in case of unexpected situations.


14.Rich Industrial Communication Interfaces

Provides multiple communication ports including CAN, RS485, RS232, Ethernet and 3G wireless network. It realizes data interaction among AC input unit, charging module and DC terminal, and obtains real-time EV battery parameters during charging.


15.Real-Time Insulation Monitoring

Supports automatic insulation monitoring; it cuts off power output automatically when low insulation is detected to prevent electric hazards and ensure safe operation.


16.High Efficiency, Reliability & Easy Maintenance

Delivers high working efficiency, stable performance and ultra-low radiation. Features quick maintenance, flexible capacity expansion, energy saving and eco-friendly operation.


17.Wide Temperature Adaptation & Isolated Heat Dissipation

Adopts independent heat dissipation air ducts with wide working temperature range. Separate thermal design for power unit and control circuit keeps the control area dust-free and stable.


18.Fireproof Metal Enclosed Shell

Full metal closed shell structure with fireproof and high-temperature resistant performance, improving overall equipment safety and durability.


19.Customizable Display Interface

The touch display interface supports personalized customization of logo, UI style and operation content to fit brand image and commercial scenarios.
