44KW AC EV Charger - Fast Charging for Electric Vehicles

Name: 44KW AC EV Charger - Fast Charging for Electric Vehicles
Brand: XTECK NEW ENERGY TECHNOLOGY CO., LTD.
Price: 200 USD
Availability: InStock

● High Power Options: 14kW, 22kW, 44kW for fast charging across vehicles.

● Global Compatibility: Supports Type 1, Type 2, GB/T connectors.

● Commercial-Ready: OCPP 1.6, POS system, and multiple payments (VISA, Apple Pay, etc.).

● Tough & Reliable: IP55 carbon steel casing—waterproof, dustproof, UV-resistant, works in -40°C to +60°C.

● Safety First: Over-temperature, overload, short-circuit, and leakage protection.

● Smart Connectivity: 4G/WiFi/LAN for remote monitoring and current adjustment via OCPP.

● Easy to Use: 5-inch touchscreen + LED indicators for clear status and operation.

● Versatile Use: Indoor/outdoor, supports simultaneous multi-vehicle charging.

● Modular Design: Contactor-based for easy maintenance, lowering operational costs.

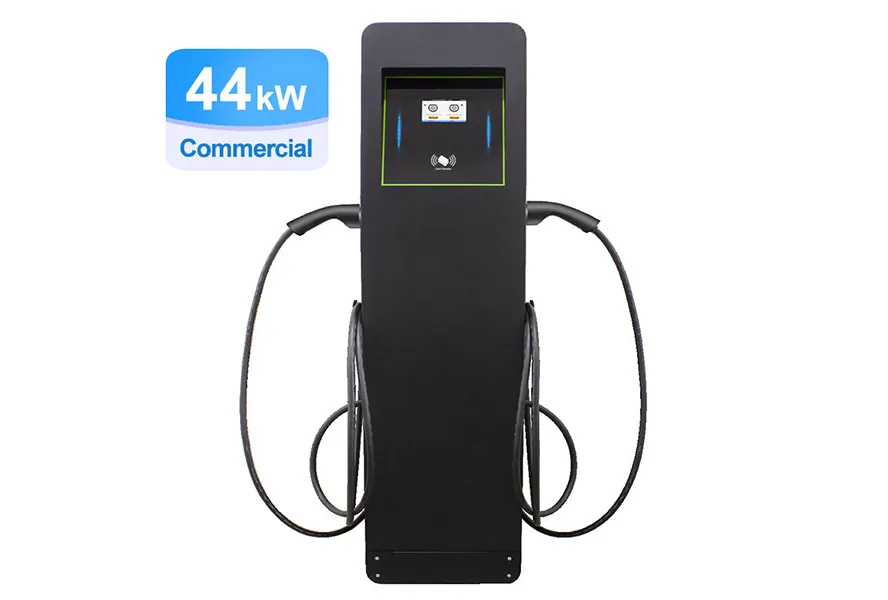

44kw ac ev charger fast charging for electric vehicles 1

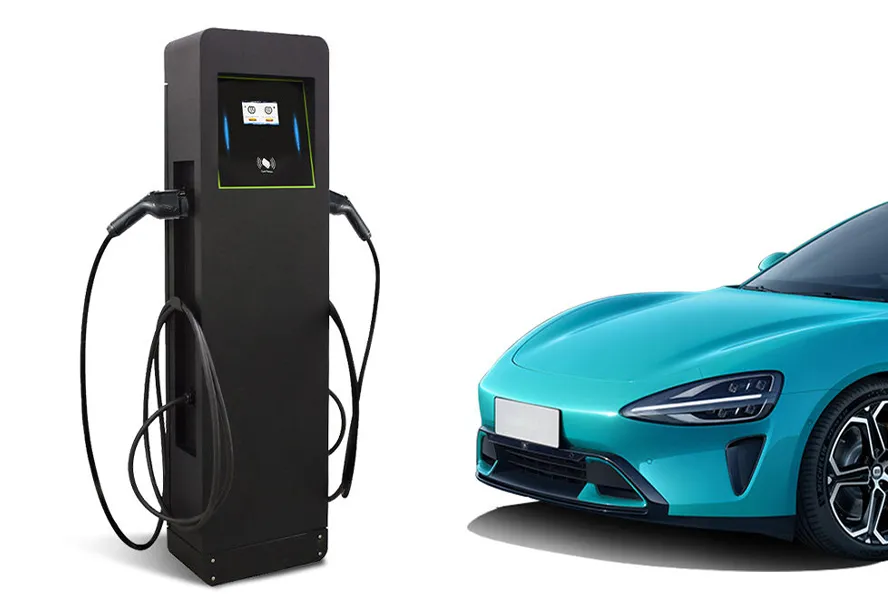

44kw ac ev charger fast charging for electric vehicles 2

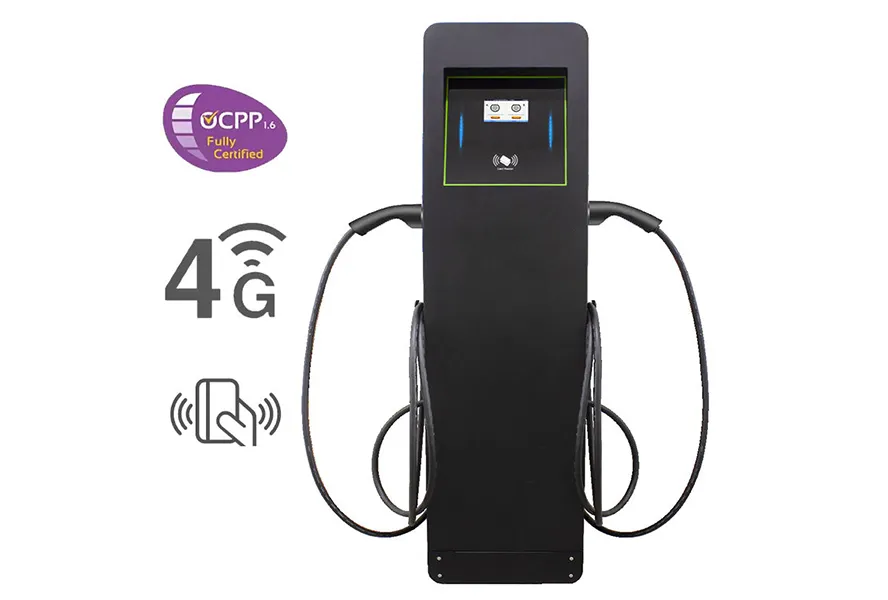

44kw ac ev charger fast charging for electric vehicles 3

Contact Us

Specifications of 44KW AC EV Charger - Fast Charging for Electric Vehicles

Technical Information
Standard	CCS2 /CCS 1/GBT
Rated power	7kW+7kW / 11kW+11kW / 22kW+22kW
Rated output current	16A/32A
Input Voltage Range	220VA ± 20% (1-phase) / 380VA ± 20%(3-phase)
Output Voltage Range	220VA ± 20% (1-phase) / 380VA ± 20%(3-phase)
Charging interface	IEC 61851、GB/T 20234、GB/T 18487-2015, GB/T 20234-2015
Working Frequency	45-65 Hz
Networking method	4G/WIFI/LAN
Bluetooth	NA
Control mode	OCPP1.6 J (QR code / RFID)
IP grade	≥ IP55
Working Temperature	-40℃～ +60℃
Working Humidity	5%-95% Non-condensing
Special Protection	UV resistance
Working altitude	≤ 2000m
Cooling mode	Natural cooling
MTBF	≥ 100000H
Standby power	3W/5W (With LCD)
Operating instructions	On-screen display / Buzzer
Status indication	On-screen display /LED breathing light
Application Scenario	Outdoor indoor parking and charging
Weight	<46.3kg
Dimension	1500(H)mm x 400(W)mm x 230(D)mm

Features of 44KW AC EV Charger - Fast Charging for Electric Vehicles

●High Charging Power: With an impressive 14kW 22kW 44kW output, this charger delivers rapid and efficient electric vehicle charging, significantly reducing downtime for EV owners.

●Dual Charging Guns: Equipped with two charging guns, it allows two electric vehicles to charge simultaneously, optimizing convenience for users.

●IEC Standards: This charger complies with IEC standards, assuring safety and quality in every charging session.

●OCPP Compatibility: Fully compliant with the Open Charge Point Protocol (OCPP), it enables intelligent communication and integration with various charging networks and energy management systems.

Applicable Scenes of 44KW AC EV Charger - Fast Charging for Electric Vehicles

1.Residential Charging: Ideal for single EV owners, this 44kW EV charger combines a compact design with high-power charging, offering reliable, convenient home charging.

2.Workplace Charging: As a 2×22kW dual-gun station, it fits offices or factories, letting employees charge their EVs effortlessly during work hours.

3.Public Charging: Suitable for road-side spots or public parking lots, it provides on-the-go EV owners with easy access to fast charging.

4.Fleet Charging: Perfect for businesses with EV fleets. Supporting 7kW/11kW/22kW/44kW, it charges vehicles quickly to keep fleets operational and productive.

Overall, this dual-gun smart 44kW AC wallbox charger is a versatile, reliable solution for both individual EV owners and businesses—an excellent investment for diverse charging needs.
