14kW 22kW 44kw AC Charging Station with Dual Cable IEC 62196-2 Type2 EV Charger

Name: 14kW 22kW 44kw AC Charging Station with Dual Cable IEC 62196-2 Type2 EV Charger
Brand: XTECK NEW ENERGY TECHNOLOGY CO., LTD.
Price: 200 USD
Availability: InStock

EV Charging stations Features

●High Charging Power: With an impressive 14kW 22kW 44kW output, this charger delivers rapid and efficient electric vehicle charging, significantly reducing downtime for EV owners.

●Dual Charging Guns: Equipped with two charging guns, it allows two electric vehicles to charge simultaneously, optimizing convenience for users.

●IEC Standards: This charger complies with IEC standards, assuring safety and quality in every charging session.

●OCPP Compatibility: Fully compliant with the Open Charge Point Protocol (OCPP), it enables intelligent communication and integration with various charging networks and energy management systems.

14kw 22kw 44kw ac charging station with dual cable iec 62196 2 type2 ev charger 1

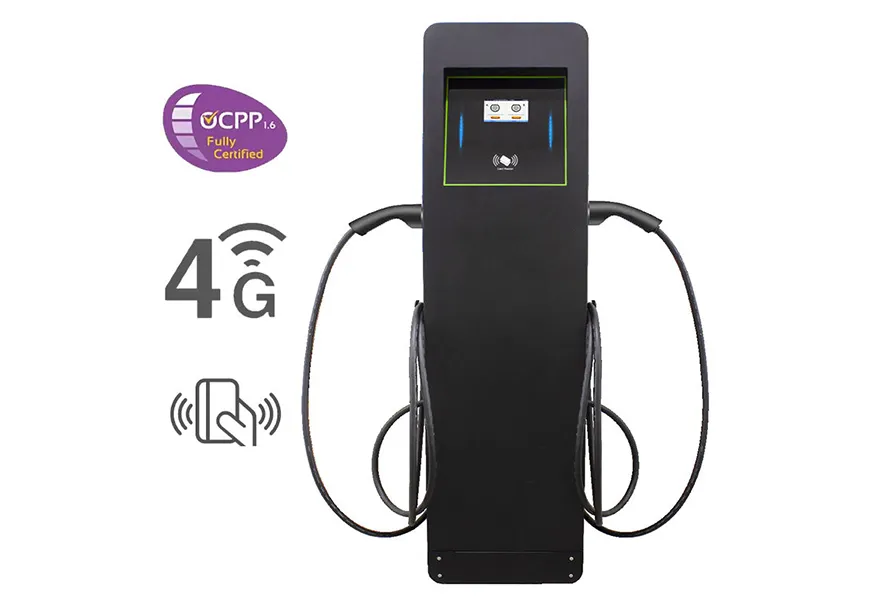

14kw 22kw 44kw ac charging station with dual cable iec 62196 2 type2 ev charger 2

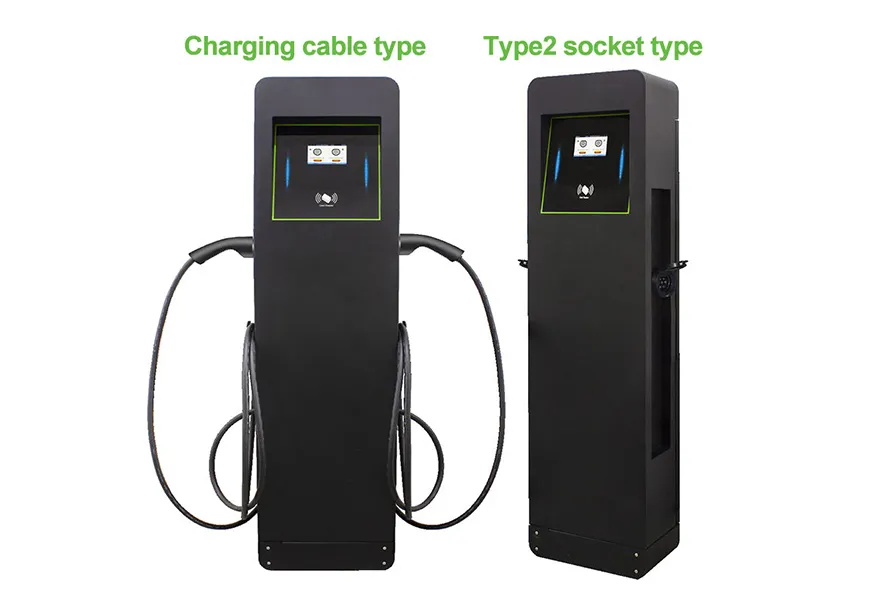

14kw 22kw 44kw ac charging station with dual cable iec 62196 2 type2 ev charger 3

Contact Us

Specifications of 14kW 22kW 44kw AC Charging Station with Dual Cable IEC 62196-2 Type2 EV Charger

Technical Information
Standard	CCS2 /CCS 1/GBT
Rated power	7kW+7kW / 11kW+11kW / 22kW+22kW
Rated output current	16A/32A
Input Voltage Range	220VA ± 20% (1-phase) / 380VA ± 20%(3-phase)
Output Voltage Range	220VA ± 20% (1-phase) / 380VA ± 20%(3-phase)
Charging interface	IEC 61851、GB/T 20234、GB/T 18487-2015, GB/T 20234-2015
Working Frequency	45-65 Hz
Networking method	4G/WIFI/LAN
Bluetooth	NA
Control mode	OCPP1.6 J (QR code / RFID)
IP grade	≥ IP55
Working Temperature	-40℃～ +60℃
Working Humidity	5%-95% Non-condensing
Special Protection	UV resistance
Working altitude	≤ 2000m
Cooling mode	Natural cooling
MTBF	≥ 100000H
Standby power	3W/5W (With LCD)
Operating instructions	On-screen display / Buzzer
Status indication	On-screen display /LED breathing light
Application Scenario	Outdoor indoor parking and charging
Weight	<46.3kg
Dimension	1500(H)mm x 400(W)mm x 230(D)mm

Product Descriptions of 14kW 22kW 44kw AC Charging Station with Dual Cable IEC 62196-2 Type2 EV Charger

●High Power Output: Available in 14kW, 22kW, and 44kW options for fast charging of various vehicles.

●Multi-Interface Compatibility: Supports Type 1, Type 2, and GB/T connectors, suitable for global markets.

●Commercial Operation Features: OCPP 1.6 protocol support, POS system, and multiple payment methods (VISA, MasterCard, Apple Pay, Google Pay, PayPal).

●Durable Design: Carbon steel casing with IP55 rating, waterproof, dustproof, UV-resistant, and operates in extreme temperatures (-40°C to +60°C).

●High Safety Standards: Includes protection against over-temperature, overload, over-voltage, under-voltage, short circuits, and leakage.

●Smart Control and Monitoring: 4G, WiFi, and LAN connectivity for remote monitoring and adjustable charging currents via OCPP platform.

●User-Friendly Operation: 5-inch touchscreen and LED indicators for intuitive charging status and easy operation.

●Wide Range of Applications: Ideal for both indoor and outdoor charging locations, supporting simultaneous charging for multiple vehicles.

●Modular Design: Easy maintenance with a contactor-based, modular design to reduce operational costs.

Applicable Scenes of 14kW 22kW 44kw AC Charging Station with Dual Cable IEC 62196-2 Type2 EV Charger

1.Residential Charging: Ideal for single EV owners, this 44kW EV charger combines a compact design with high-power charging, offering reliable, convenient home charging.

2.Workplace Charging: As a 2×22kW dual-gun station, it fits offices or factories, letting employees charge their EVs effortlessly during work hours.

3.Public Charging: Suitable for road-side spots or public parking lots, it provides on-the-go EV owners with easy access to fast charging.

4.Fleet Charging: Perfect for businesses with EV fleets. Supporting 7kW/11kW/22kW/44kW, it charges vehicles quickly to keep fleets operational and productive.

Overall, this dual-gun smart 44kW AC wallbox charger is a versatile, reliable solution for both individual EV owners and businesses—an excellent investment for diverse charging needs.
