7kW EV Charger Single Phase Level 2 Type 2 Charger for Electric Car

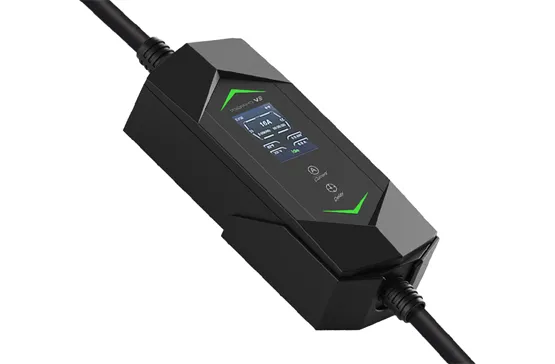

Name: 7kW EV Charger Single Phase Level 2 Type 2 Charger for Electric Car
Brand: XTECK NEW ENERGY TECHNOLOGY CO., LTD.
Price: 200 USD
Availability: InStock

Professional EV Charger Manufacturer: 7kW Dual-Standard Portable EV Charger. Supports GB/T (China) & Type 2 (European) standards, compatible with 99% global mainstream EVs. Adjustable current (16A/24A/32A), IP65 dustproof/waterproof, 3-5kg lightweight design. Multiple safety protections (leakage/overvoltage/overheating/short circuit) with CE/GB/T/TÜV certifications. Factory-direct supply for stable quality, competitive pricing & customized support—we seek long-term partnerships with global distributors, retailers & business collaborators.

EV charging mode 2: Standard socket outlet with special cable, integrating a system for power control and protection, for domestic installations

Charging mode 2 is a method for the connection of an EV to a standard socket-outlet, with a control pilot function and a system for personal protection against electric shock, integrated into the connection cable, between the standard plug and the EV.

Contact Us

Specifications of 7kW EV Charger Single Phase Level 2 Type 2 Charger for Electric Car

Technical Information
Standard	GBT	Type 2
Rated Power	7kW	7kW
Intput Current	32A Max	32A Max
Input Voltage	220V AC±20%
Product Size	3019792mm
Input Frequency	50/60Hz
Enclosure Material	ABS and PC Flame Retardant Grade UL94 V-0
Charging Plug	Opt
HCI	Touch key
Charging Model	RFID Card, APP (Optional)
Communication Interface	WIFI/Bluetooth/ 4G/NFC (Optional)
Protection level	IP 65
Work humidity	5% - 95% non-condensation
Work temperature	-30℃-+50℃
Work altitude	≤2000m
Cooling Model	Natural cooling
Input line length	2M(CUSTOMIZATION ACCEPTABLE)
Gun cable lenth	3M(CUSTOMIZATION ACCEPTABLE)
current regulation	10A / 16A / 20A/ 24A / 32A ( Optional )	10A / 16A / 20A/ 24A / 32A ( Optional )
Certification	TUV,CE Approved
Protection	1. Over and under frequency protection 2. Over Current Protection 3. Leakage Current Protection (restart recover） 4. Over Temperature Protection 5. Overload protection (self-checking recover) 6. Ground Protection and Short circuit protection 7. Over voltage and under-voltage protection 8. Lighting Protection

Features of 7kW EV Charger Single Phase Level 2 Type 2 Charger for Electric Car

✅ Security & Anti-Theft: Starts charging via card swiping or Bluetooth connection; only bound users and authorized users can access charging.

✅ Remote Control: Manage the home charger via the AITO User Service Mini Program—check real-time charging status and operation status remotely.

✅ Leakage Protection: Equipped with built-in leakage protection for enhanced safety.

✅ Charge Start/Stop: Initiate or halt charging remotely through the AITO User Service Mini Program.

✅ Over-the-Air Updates: Upgrade charger software via the AITO User Service Mini Program to access the latest features.

✅ One-Click Charge Port Opening: After binding with the vehicle, press the charger unlock button to open the vehicle’s charge port cover instantly.

✅ Multi-Point Temperature Control: Real-time temperature monitoring of the charging gun, charger body, and connectors for proactive charging protection.

Frequently Asked Questions (FAQs)

Q1: What if the EV charger fails to start charging?

1. Check if your phone has a stable network connection.

2. Verify the charger’s network status on the AITO User Service Mini Program.

3. For extended-range electric vehicles (EREVs), ensure the fuel tank cap is fully closed.

4. Confirm the vehicle is turned off.

5. Check if the charging gun is properly plugged in, and recheck the charger’s network status on the AITO User Service Mini Program.

6.Inspect the charging gun head and the vehicle’s charging port for foreign objects. If any debris is found, contact the after-sales service hotline.

7.Turn off the upstream circuit breaker of the charger, wait 5 seconds, then power it on again.

Q2: What if the charging gun cannot be pulled out after charging?

1. Check if the AITO User Service Mini Program’s charging interface shows "Charging Stopped" and if charging has ceased in the vehicle.

2. After turning off the charger’s power, press the charging gun unlock button and attempt to remove it.

3. After turning off the charger’s power, try pulling the emergency unlock cable inside the vehicle.
