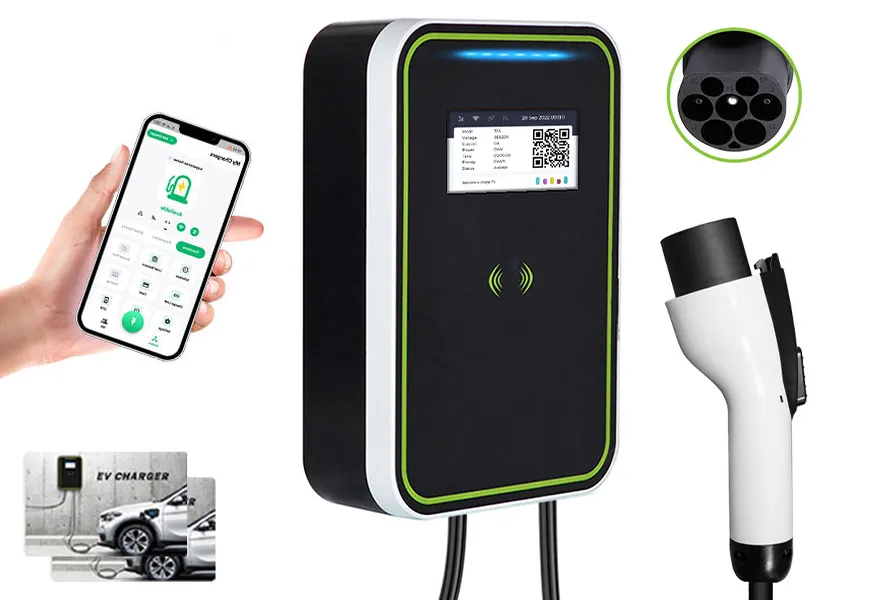

Eletric Car Charging Station 7kW 11kW 22kW Wallbox Type2 AC Charging Station

XTECK home AC wall-mounted charger (7KW/11KW/22KW) fits residential use, compliant with IEC62196 Type 2 for most EVs. APP-enabled for scheduled charging (cost-saving) and real-time monitoring. CE/RoHs certified, with over-current/over-voltage protection. Compact wall design saves space, ideal for home garages/parking, offering convenient, reliable charging.

Features:

Powerful Performance, Heavy Duty and Outdoor-Ready Ev Charging Station

Fast Charge

  • Waterproof: IP65

  • Bluetooth &WiFi Connectivity and Apps

  • OTA Remote Firware Updates

Application:

  • Residential Home

  • Multifamily Property

  • Private Property

  • Public Parking Garage

  • Public Commercial Common Ared


Specifications of Eletric Car Charging Station 7kW 11kW 22kW Wallbox Type2 AC Charging Station

Technical Information
StandardGBTType 2Type 1
Rated power7kW/11KW/22KW7kW/11KW/22KW7.6kW/12KW
Rated output current16A/32A16A/32A16A/32A/50A
Input Voltage Range220VA ± 20% (1-phase)230VA ± 20% (1-phase)120VA ± 20% (LEVEL 1)
Output Voltage Range380VA ± 20%(3-phase)400VA ± 20%(3-phase)240VA ± 20%(LEVEL 2)
Charging interfaceIEC 61851、GB/T 20234、GB/T 18487-2015, GB/T 20234-2015SAE J1772
Working Frequency45/65 Hz
Networking method4G/WIFI/LAN
BluetoothNAYesOptional
Control modePlug and Charge/APP control / RFID card/OCPP1.6 J (QR code / RFID)
IP grade≥ IP65
Working Temperature-40℃~ +60℃
Working Humidity5%-95% Non-condensing
Special ProtectionUV resistance
Working altitude≤ 2000m
Operating instructionsOn-screen display / Buzzer
Status indicationOn-screen display /LED breathing light
Application ScenarioOutdoor indoor parking and charging
Weight<7 kg<8 kg
Dimension238mm x 95mm x 348mm




APP Functions of Eletric Car Charging Station 7kW 11kW 22kW Wallbox Type2 AC Charging Station

★Charging by appointment Charge late at night by appointment, low-carbon, eco-friendly, lower electricity bills

★Real-time data Real-time display of current charging voltage, current and power Accurate metering of the charge pile's electricity consumption, so that every dollar of electricity used is clearly visible.

★Charging station historical usage report Daily and monthly charging status at a glance

★Smart WIFI networking OTA upgrades; improved troubleshooting through remote diagnostics

★Power adjustment Customised charging power, adjustable up to 1.8KW-22KW.




Features of Eletric Car Charging Station 7kW 11kW 22kW Wallbox Type2 AC Charging Station

Multiple Protections for Safe Use - Safety is paramount. Our EV charger has built-in protections against lightning, current leakage, overcurrent, overheating, undervoltage, and overvoltage, indicated by varied LED flashing frequencies. It automatically powers off in abnormal situations to prevent car damage.

Flame-Retardant Material - Anti-combustion design with flame-retardant materials to avoid accidents.

High Quality - CE certified for longer service life. The internal smart chip protects your car and circuit, ensuring safe use.

Universal Compatibility - Compliant with IEC 61851, GB/T 20234, SAE J1772; Type 2/Type 1/GBT standards. High-performance control board is compatible with all EVs.

Weatherproof for Indoor/Outdoor Use - IP65 waterproof rating allows flexible placement and movement of the portable charger at home, both indoors and outdoors.

Safe & Secure - Equipped with over-current, over-voltage, under-voltage, leakage, and overheating protection.

Professional Customer Service - XTECK's team offers technical support and a 12-month warranty. Contact us for any dissatisfaction, and we'll resolve it promptly.

Smart APP Control - Use the EV Smart Charger APP to control the charger, manage charging times, schedule charging remotely, and optimize for off-peak electricity. Bluetooth, Wi-Fi, and Ethernet enable automatic OTA remote firmware updates, keeping you connected when needed.

2 RFID Cards - Lightweight and easy to carry in wallets or pockets, enabling faster and simpler charging initiation.

Robust Safety: Upgraded Type A leakage protection (30mA AC + 6mA DC, three-phase); IP65 waterproof and UV-protected ABS casing, ensuring quality, security, and a user-friendly experience.

Commercial-Ready Solutions: Provides offline e-purse and paid charging solutions suitable for hotels, restaurants, malls, offices, parking lots, etc.
