14kW 22kW 44kW Floor-Mounted Dual Gun EV AC Charger for Business

Name: 14kW 22kW 44kW Floor-Mounted Dual Gun EV AC Charger for Business
Brand: XTECK NEW ENERGY TECHNOLOGY CO., LTD.
Price: 200 USD
Availability: InStock

This commercial use 14kW 22kW 44kW EV floor-mounted charging station features a 4.3-inch high-brightness display, IP54 protection, and forced air cooling with dustproof design. It ensures safety with an electronic lock function and supports TYPE 2 interface standards. With a durable MTBF of 30,000 hours and comprehensive pre-shipment testing, it delivers reliable performance for altitudes up to 2000m.

●Basic functions: Bluetooth, WiFi, APP, RFlD Function Support RFID Card /0CPp 1.6J (optional)

●Touch Screen: Friendly interaction interface, 4.3-inch'7 inch color touch screen.(optional)

●Multiple Models: Support multiple modes of charging operation management and payment.

●Multiple-Connectivity: Support Ethemet or wireless telecommunication; Support online data upgrade.

●Multiple Connector: Support Type-2/type-1/connector (or Socket) optional

●Dual Charging Guns

Equipped with two charging guns (7kW*2 /11kW*2 /22kW*2), it allows two electric vehicles to charge simultaneously, optimizing convenience for users.

●OCPP Compatibility

Fully compliant with the Open Charge Point Protocol (OCPP), it enables intelligent communication and integration with various charging networks and energy management systems.

Contact Us

Specifications of 14kW 22kW 44kW Floor-Mounted Dual Gun EV AC Charger for Business

Technical Information
Name	Commercial EV Charger
Maximum output power	7kW2 /11kW2 /22kW*2
Input voltage	AC 220V /380V /380V
Input voltage frequency	50Hz / 60Hz
Output voltage	AC 230V
Output current	32A / 16A / 32A
Efficiency	≥98%
Insulation resistance	≥10MΩ
Power consumption	7kW /11kW /22kW
AC & DC Fault Protection	AC: Type A 30mA RCD + DC: 6mA
Operating ambient temperature	-30°C~+50°C
Storage ambient temperature	-40°C~+80C
Ambient humidity	5%~95% No frost, no condensation
Altitude	No more than 2000 meters
Status indication	LED indicator
Screen	4.3-inch LCD color screen
Charging interface	IEC 62196 Type 2
Degree of temperature	IP55, IK10
Safety Protection	Overvoltage protection, undervoltage
	protection,grounding protection,lightning
	protection,leakage protection, flame
	retardant protection, vercurrent protection.
Cable Length	5 meters for each gun
Weight	12kg

Product Descriptions of 14kW 22kW 44kW Floor-Mounted Dual Gun EV AC Charger for Business

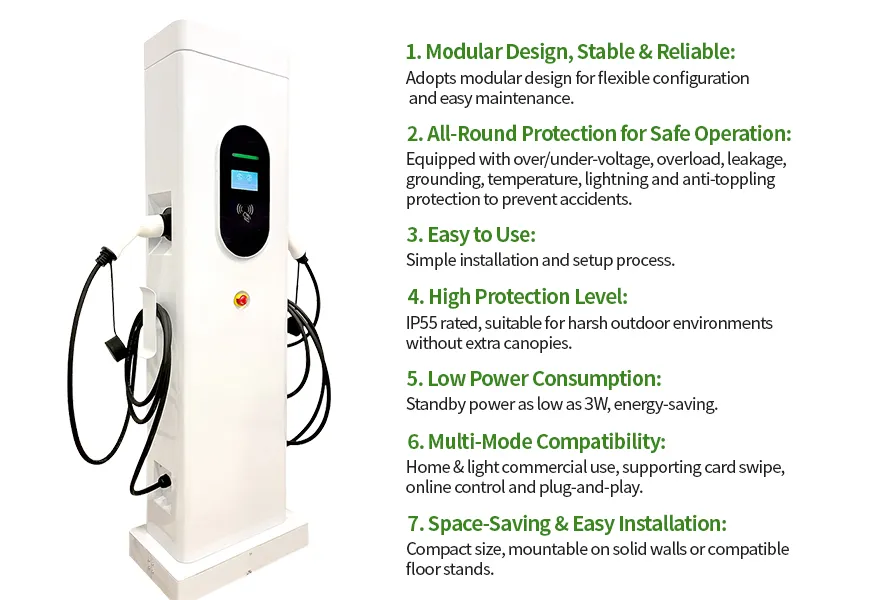

●High Power Output: Available in 14kW, 22kW, and 44kW options for fast charging of various vehicles.

●Multi-Interface Compatibility: Supports Type 1, Type 2, and GB/T connectors, suitable for global markets.

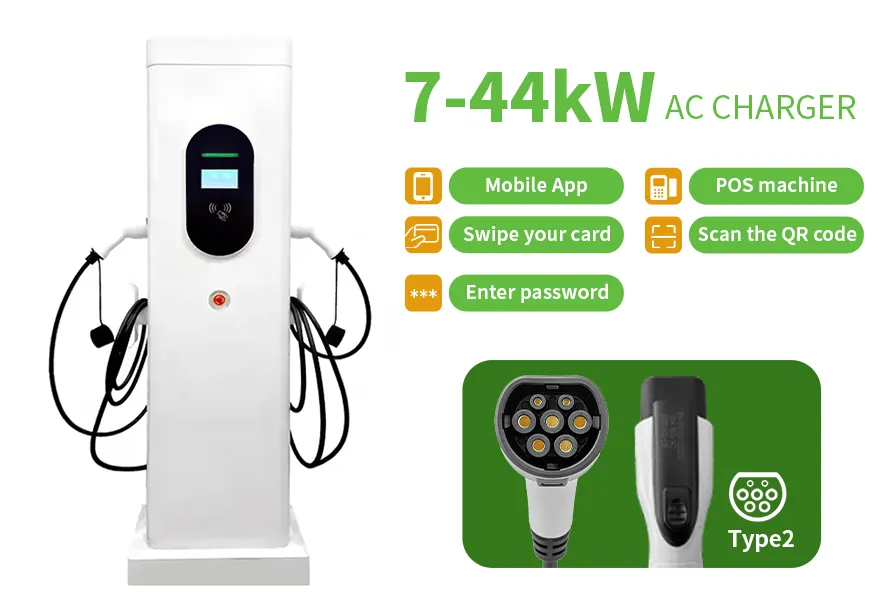

●Commercial Operation Features: OCPP 1.6 protocol support, POS system, and multiple payment methods (VISA, MasterCard, Apple Pay, Google Pay, PayPal).

●Durable Design: Carbon steel casing with IP55 rating, waterproof, dustproof, UV-resistant, and operates in extreme temperatures (-40°C to +60°C).

●High Safety Standards: Includes protection against over-temperature, overload, over-voltage, under-voltage, short circuits, and leakage.

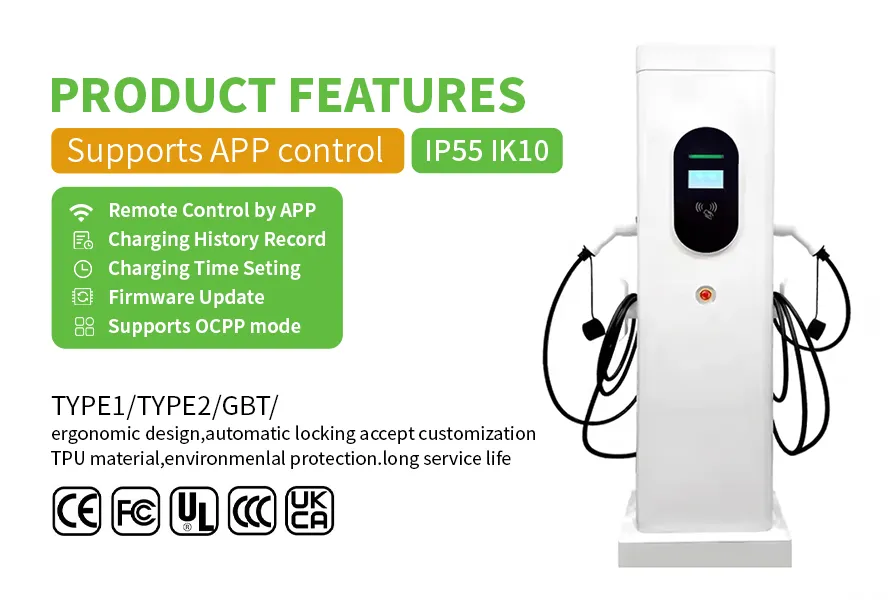

●Smart Control and Monitoring: 4G, WiFi, and LAN connectivity for remote monitoring and adjustable charging currents via OCPP platform.

●User-Friendly Operation: 5-inch touchscreen and LED indicators for intuitive charging status and easy operation.

●Wide Range of Applications: Ideal for both indoor and outdoor charging locations, supporting simultaneous charging for multiple vehicles.

●Modular Design: Easy maintenance with a contactor-based, modular design to reduce operational costs.

Applicable Scenes of 14kW 22kW 44kW Floor-Mounted Dual Gun EV AC Charger for Business

1.Residential Charging: Ideal for single EV owners, this 44kW EV charger combines a compact design with high-power charging, offering reliable, convenient home charging.

2.Workplace Charging: As a 2×22kW dual-gun station, it fits offices or factories, letting employees charge their EVs effortlessly during work hours.

3.Public Charging: Suitable for road-side spots or public parking lots, it provides on-the-go EV owners with easy access to fast charging.

4.Fleet Charging: Perfect for businesses with EV fleets. Supporting 7kW/11kW/22kW/44kW, it charges vehicles quickly to keep fleets operational and productive.

Overall, this dual-gun smart 44kW AC wallbox charger is a versatile, reliable solution for both individual EV owners and businesses—an excellent investment for diverse charging needs.
