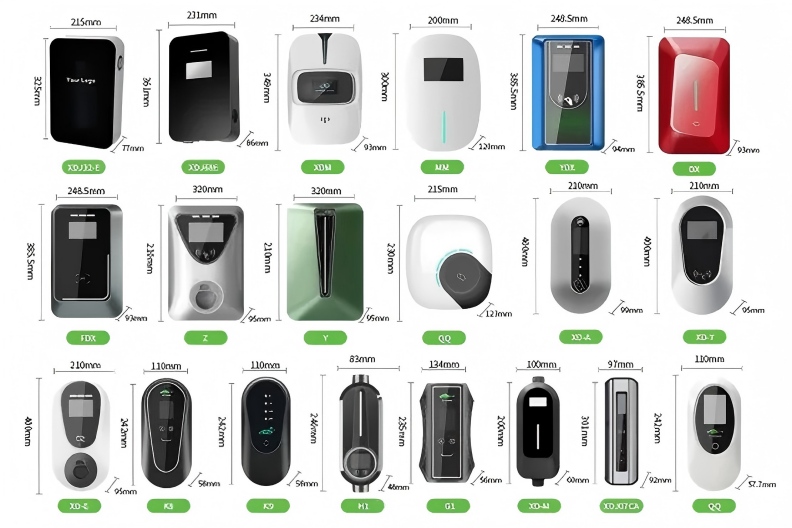

Choosing an EV Charger Outdoor Enclosure for Different Outdoor Installation Conditions

An EV charger installed under a residential canopy faces very different conditions from one placed beside a highway, in an uncovered commercial car park, near the coast, or inside an industrial site. Although all of these installations may be described as “outdoor,” the enclosure requirements can vary considerably in terms of weather resistance, corrosion protection, heat dissipation, mechanical strength, cable management, and maintenance access.

This is why choosing an EV charger outdoor enclosure should begin with the conditions the charger will experience throughout its service life. A highly sealed housing may perform well against rain and dust but create additional thermal challenges. A heavy metal enclosure may offer excellent impact resistance but add cost and installation complexity where that level of protection is unnecessary. Likewise, an enclosure that appears spacious enough on a drawing may become difficult to wire or maintain after all internal components are installed.

A practical outdoor EV charger box therefore needs to protect the charging electronics while remaining suitable for the site, internal hardware, installation method, and future servicing requirements. The following factors provide a more reliable basis for selecting an enclosure for different outdoor charging environments.

Site Location and Exposure Level: Start with the Real Operating Environment

The first step is to understand how exposed the charger will actually be. Outdoor installations vary from relatively protected wall-mounted units to freestanding chargers exposed continuously to rain, sunlight, wind-driven dust, temperature changes, and physical contact.

A charger installed beneath a roof or inside a covered parking area generally experiences less direct rainfall and solar loading than a charger positioned in an open commercial car park. Roadside installations may face greater dust exposure, vehicle movement, and accidental impact, while coastal installations introduce additional concerns related to salt-containing air and corrosion. Industrial sites can create another set of challenges where airborne contaminants, process dust, or chemical exposure are present.

The surrounding installation environment also affects water behaviour. It is important to consider whether water can collect near the base of the charger, whether rain is likely to be driven toward cable entries or service doors, and whether the unit will remain exposed to direct sunlight for extended periods.

These factors determine what the EV charger outdoor enclosure really needs to withstand. Specifying an enclosure simply because it is labelled for outdoor use can result in either insufficient protection or unnecessary cost if the actual site conditions are not considered first.

Enclosure Material Selection for Heat, Moisture, and Chemical Exposure

Enclosure material influences mechanical strength, corrosion resistance, weight, heat transfer, manufacturing flexibility, and long-term outdoor durability. The most appropriate option depends on the environment as well as the structure of the charging equipment inside.

Engineering plastics are commonly considered for compact charging equipment because they can provide relatively lightweight construction and allow complex moulded shapes. However, outdoor performance depends heavily on the specific material formulation. Resistance to ultraviolet exposure, moisture, temperature variation, impact, and ageing should all be evaluated when the enclosure will remain outside for extended periods.

Metal housings are often selected where greater structural strength or different thermal characteristics are required. Aluminium can combine relatively low weight with corrosion resistance and useful heat-transfer properties. Stainless steel may be suitable for demanding environments where corrosion resistance and physical durability are particularly important, while coated steel can provide a practical balance between structural strength and manufacturing cost.

The enclosure material should therefore be evaluated together with coatings, seals, fasteners, wall thickness, internal heat generation, and the installation environment. For buyers developing a complete charging unit rather than purchasing the housing as an isolated component, reviewing XTECK Power's EV charger products and enclosure solutions can also help clarify how different enclosure structures are matched with charging hardware, internal layouts, and application requirements.

Ventilation, Sealing, and Condensation Control in Outdoor EV Charger Enclosures

Protection against water and dust is only one side of outdoor enclosure design. Heat generated by power electronics, control boards, displays, communication devices, and other internal components also has to leave the housing efficiently.

This creates an important design trade-off. Increasing sealing can reduce the possibility of moisture or dust entering the EV charger outdoor enclosure, but it can also restrict natural airflow. If heat is not transferred effectively through the enclosure structure or a dedicated thermal-management system, internal temperatures can rise and affect component performance and service life.

The appropriate thermal strategy depends on the charger power level, internal component density, housing material, enclosure volume, ambient temperature, and installation position. Some designs can rely primarily on passive heat dissipation through the housing. Other systems may require controlled ventilation, fans, heat exchangers, or dedicated thermal components while still maintaining the required protection from the external environment.

Condensation must also be considered separately from direct water ingress. Even when rain cannot enter the enclosure, moisture already present in the internal air can condense on cooler surfaces when temperature and humidity conditions change. This is particularly relevant in regions with large daily temperature fluctuations or consistently high humidity.

A well-designed outdoor EV charger box therefore needs to coordinate sealing, airflow, heat transfer, drainage, and moisture management rather than treating each issue independently. For humid or thermally demanding locations, these factors are best addressed during enclosure design instead of after the charger has already been installed.

Cable Entry, Drainage, and Interface Design for Reliable Outdoor Installation

The enclosure shell itself is rarely the only point where outdoor protection can fail. Cable entries, connector openings, service doors, display windows, emergency controls, mounting points, and other interfaces can become more vulnerable than the main housing if they are not integrated correctly.

Cable routing is particularly important because EV chargers may include incoming power cables, charging cables, communication wiring, grounding conductors, and control connections. Their entry positions should allow appropriate sealing while avoiding excessive cable bending, pulling, or mechanical stress.

The location of cable glands and openings can also influence how water behaves around the enclosure. Poorly positioned entries may allow rainwater to remain around seals or travel along cables toward the housing. A better design considers the direction of water flow, the orientation of openings, the shape of surrounding surfaces, and whether moisture can drain away safely.

Drainage becomes especially relevant for freestanding charging equipment. Rather than assuming that water will never enter recessed areas or lower structural sections, the enclosure should be designed so that unexpected moisture does not remain trapped near sensitive electronic components.

User-facing interfaces require the same attention. Displays, buttons, card readers, charging connectors, status indicators, and cable holders need environmental protection without becoming difficult to operate. The EV charger outdoor enclosure should therefore be treated as a complete interface system rather than only as an external shell.

Space, Accessibility, and Maintenance Requirements at the Charging Site

Enclosure dimensions are often selected according to whether the internal components can physically fit inside the housing. In practice, this is only the starting point. Adequate space is also required for wiring, electrical separation, connector access, cooling arrangements, assembly operations, inspection, and future component replacement.

A very compact outdoor EV charger box may appear attractive from a product design perspective, but dense internal packaging can complicate manufacturing and maintenance. Technicians may have difficulty reaching terminals, removing modules, checking wiring, or replacing components if the internal layout leaves insufficient working clearance.

External access is equally important. A service door may have enough room to open during factory testing but become obstructed after installation beside a wall, bollard, parking space, fence, or another charger. Fasteners, panels, filters, ventilation components, and electrical access areas should remain reachable once the equipment is installed.

Maintenance requirements become even more important for commercial charging networks where service teams may be responsible for many units. An enclosure that allows easier inspection and component replacement can reduce maintenance time over the service life of the equipment, even if it is slightly larger than the smallest possible design.

The mounting method should be considered at the same time. Wall-mounted and freestanding installations place different demands on enclosure geometry, structural reinforcement, cable entry positions, and base design. The most suitable housing is therefore one that works with the complete charging installation rather than simply accommodating the electronic components.

Balancing Protection, Thermal Performance, and Installation Cost

Outdoor enclosure selection is ultimately a balancing exercise. Maximising one specification does not necessarily improve the overall charging system.

For example, increasing enclosure sealing may improve resistance to rain and airborne dust but make heat dissipation more difficult. Selecting a thicker or heavier metal housing may improve impact resistance but increase material cost, transportation weight, and installation requirements. A highly customised structure may make internal assembly easier, but the additional tooling or fabrication cost must be justified by production volume and project requirements.

The same principle applies to size. A larger EV charger outdoor enclosure can simplify wiring, airflow, and maintenance, but unnecessarily increasing enclosure dimensions can raise material, packaging, shipping, and installation costs. On the other hand, reducing the enclosure size too aggressively can create thermal and serviceability problems that outweigh the initial saving.

The best design therefore considers environmental exposure, internal heat load, material durability, cable routing, user interfaces, mounting configuration, maintenance access, manufacturing method, and expected service conditions as one system. This is particularly important for OEM programmes and large charging projects, where small enclosure design decisions can be multiplied across hundreds or thousands of units.

Cost optimisation should therefore mean eliminating unnecessary complexity without removing protection that the actual operating environment requires. A well-matched outdoor EV charger box can provide better lifecycle value than either an under-specified housing that requires frequent maintenance or an over-engineered design that adds cost without solving a real installation problem.

Conclusion

Different outdoor charging sites require different enclosure priorities. A residential charger beneath a canopy does not face the same environmental and mechanical demands as a freestanding roadside charger, a coastal installation, or equipment operating inside an industrial facility.

The most suitable EV charger outdoor enclosure should therefore be selected according to real exposure conditions, enclosure material, thermal requirements, sealing strategy, condensation risk, cable entry design, drainage, internal space, mounting configuration, and maintenance access. Looking at these factors together provides a more reliable basis for enclosure selection than concentrating on a single rating or material.

For customised charging projects, many of these decisions are closely linked to the internal component layout and final installation method. If enclosure size, material, cable interfaces, mounting structure, or outdoor operating conditions need to be matched to a specific charger design, the project can be reviewed with XTECK Power through its EV charger enclosure project consultation, so that the housing requirements can be discussed together with the intended application rather than after the enclosure specification has already been fixed.

Frequently Asked Questions

1. What should I consider when choosing an EV charger outdoor enclosure?

Consider the actual installation environment first, including rain, dust, sunlight, humidity, temperature variation, corrosion risk, mechanical exposure, internal heat generation, cable routing, mounting method, and maintenance access. The enclosure should match these combined conditions rather than one specification alone.

2. Which material is best for an outdoor EV charger box?

There is no single material that is best for every application. Engineering plastics can suit lightweight enclosure designs, while aluminium, coated steel, and stainless steel may be more appropriate where thermal performance, mechanical strength, or corrosion resistance has a higher priority.

3. Does an outdoor EV charger enclosure need to be completely sealed?

Not always. The required sealing level depends on the installation environment. Excessive sealing can also make heat dissipation more difficult, so environmental protection and thermal management need to be designed together.

4. How can condensation be reduced inside an outdoor EV charger box?

Condensation can be managed by considering moisture entry, temperature differences, airflow, enclosure sealing, drainage, and thermal design together. The appropriate solution depends on local humidity, temperature variation, and internal heat generation.

5. Why are cable entries important in an EV charger outdoor enclosure?

Cable entries can become points for water ingress and mechanical stress. Their position, sealing method, orientation, and cable routing should prevent unnecessary pulling while helping keep water and contaminants away from internal electrical components.

6. Should the enclosure be selected before the EV charger internal layout is finalised?

It is generally better to develop the enclosure and internal layout together. Power modules, PCBs, terminals, displays, charging cables, communication components, cooling requirements, and service clearances can all affect enclosure dimensions and interface positions.
