20kW 30kW 40kW Wall Mounted DC Fast Charger Station

Name: 20kW 30kW 40kW Wall Mounted DC Fast Charger Station
Brand: XTECK NEW ENERGY TECHNOLOGY CO., LTD.
Price: 200 USD
Availability: InStock

The 20/30/40kW DC EV Charger is a fast, efficient, and safe DC MINI charger. It comes with multiple protection functions, featuring double safety measures for both input and output. During charging, it monitors the charging cable's connection status in real time and stops charging immediately if any abnormality is detected. With a user-friendly design, it enables customers to complete the charging process conveniently.

7kW/15kW/20KW/30KW/40KW--single plug

CCS1/CCS2/CHAdemo/GBT

5 inch Android Screen Display

Output Voltage to 1000V

Various of billing solutions

OCPP1.6J

WiFi/4G/Ethernet

Certificate:CE/UKCA/RoHS

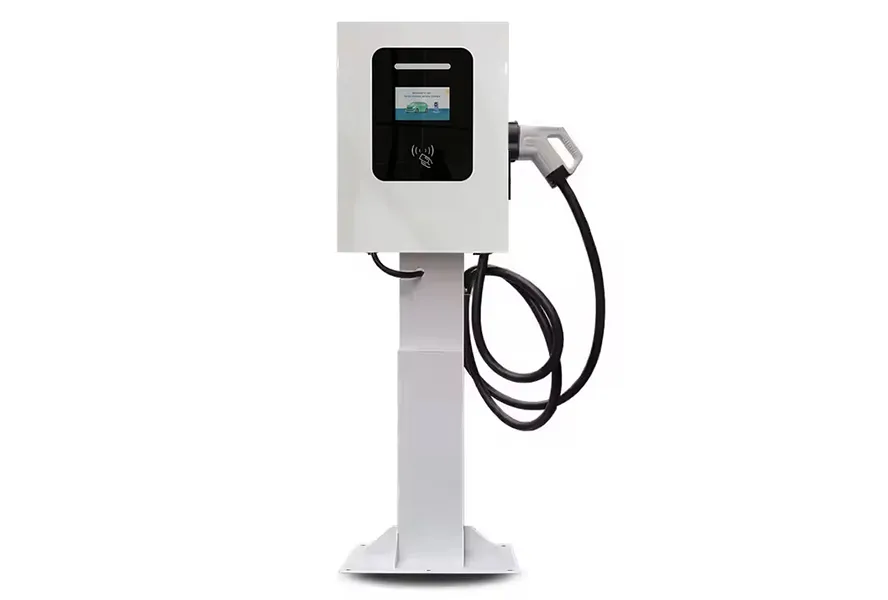

20kw 30kw 40kw wall mounted dc fast charger station 1

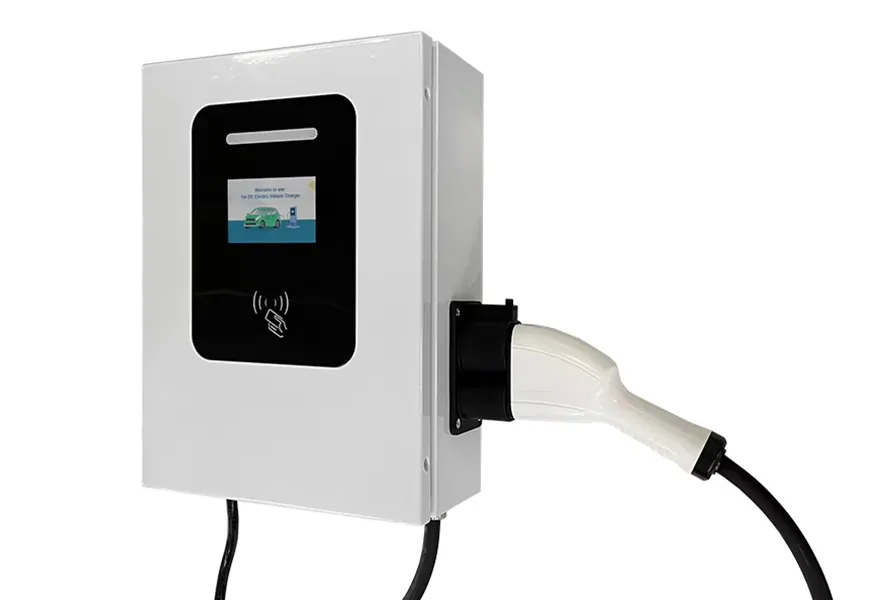

20kw 30kw 40kw wall mounted dc fast charger station 2

20kw 30kw 40kw wall mounted dc fast charger station 3

Contact Us

Specifications of 20kW 30kW 40kW Wall Mounted DC Fast Charger Station

Technical Information
Output Power	7kW	15kW	20kW	30kW	40kW
Basic Functions	Plug and Charge, Swipe Card, APP, 0CPP, Load balancing (optional feature)
Output Voltage	50-750V	200-1000V
Input Voltage	100-280V	280-500V
Output current	0-20A	0-60A		0-100A	0-133A
Intput Current	32A			49A	63A
In connections	L+N+PE	3P+N+PE
Product Size	450340165	660470248		660540280
Level	IP54
Gun Line Length	5M(Acceptable customization)
Inlet Length	0M(Acceptable customization)
Display	5 inch
Charging Protocol	GBT27930/CHADEMO 2.0 /DIN 70121 0CPP 1.6USON)/IS0 15118

Functionality Introduction of 20kW 30kW 40kW Wall Mounted DC Fast Charger Station

✅Easy to Use

5-inch LCD touch screen with multi-language interface

Supports secure authentication and payment via RFID, mobile apps or POS machines

✅Optional Plug & Charge function

Wall-mount or Pedestal-mount available

Small footprint, suitable for various places

Robust components, suitable for indoor and outdoor environments

Compact size and lightweight

✅Guaranteed Security

IP54 protection rating

Waterproof, dustproof and flame-retardant

With over-temperature, overload, short circuit, leakage and other protection functions

Equipped with emergency stop function

This 20kw/30kw/40kw DC Fast charger for home is a type of wall-mounted (fast) charging station

1.Space-saving: Compact design, directly wall-mounted, taking up little space. Ideal for environments with limited space such as garages and small parking lots.

2.Faster charging: DC power is directly input into the vehicle's battery without going through the on-board charger, resulting in much faster charging speeds than traditional AC chargers. This improves turnover rates in commercial scenarios and enhances user satisfaction.

3.High power output: Typically with higher power than AC chargers, enabling quick energy replenishment. Especially suitable for emergencies or electric vehicles with large battery capacities.

4.Easy installation: Only requires a sturdy wall and a power source for installation. Many models come with built-in cable management systems, making it convenient for households and businesses to add charging facilities.

Remote monitoring and management: Equipped with advanced monitoring functions, allowing remote tracking of charging status, monitoring of power consumption, and even charging. It helps enterprises optimize facilities and provides more convenience for users.

5.Strong scalability: Can be easily expanded to meet growing demand. Businesses can add chargers as needed without affecting existing facilities, making it a long-term investment to adapt to the popularization of electric vehicles.

6.Excellent safety performance: Manufacturers prioritize safety, with built-in features such as overcurrent protection, overvoltage protection, and ground fault detection. These prevent electrical accidents and ensure peace of mind for both users and operators.
