Home 7kW 11kW 22kW Wallbox Type2 1Phase 3 Phase 16A 32A RFID APP 22KW EV Charger

Experience the quality like never before with your exclusive range of Wall-mounted Charging Stations offering you by the best manufacturers. XTECK have various type of Upgraded Version Wallbox 7KW 11KW 22KW Electric Vehicle Charging Stations IEC62196 Type 2 AC EV Charger With APP CE RoHs that can be used for different applications.

APP RFID Function：

Selection of charging mode (Plug and Play,Normal mode,Schedule).
Display the real-time information of the device, start and stop the charging pile.
Operation record and fault record.
Bind RFlD card, adjust current, display version number and equipment number.

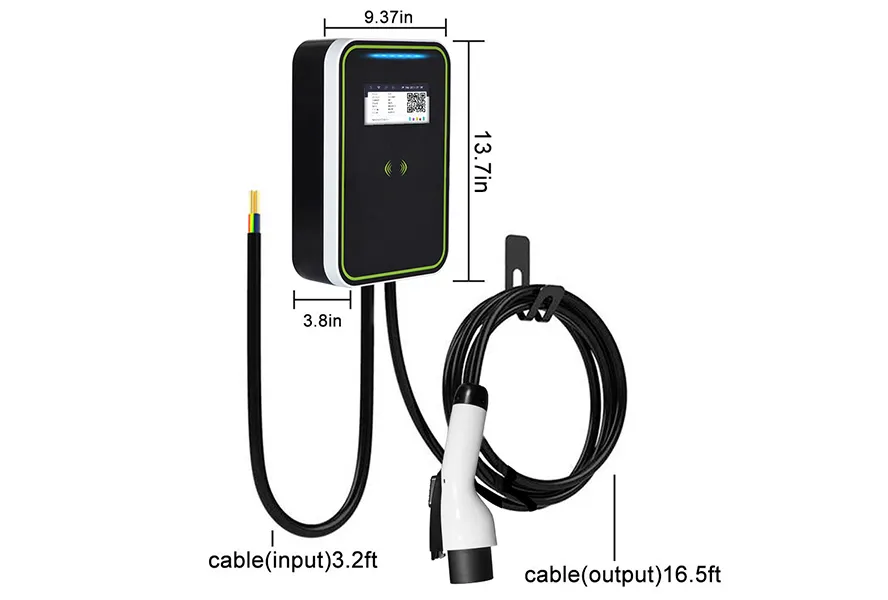

Home 7kW 11kW 22kW Wallbox Type2 1Phase 3 Phase 16A 32A RFID APP 22KW EV Charger 1

Specifications of Home 7kW 11kW 22kW Wallbox Type2 1Phase 3 Phase 16A 32A RFID APP 22KW EV Charger

Technical Information
Standard	GBT	Type 2	Type 1
Rated power	7kW/11KW/22KW	7kW/11KW/22KW	7.6kW/12KW
Rated output current	16A/32A	16A/32A	16A/32A/50A
Input Voltage Range	220VA ± 20% (1-phase)	230VA ± 20% (1-phase)	120VA ± 20% (LEVEL 1)
Output Voltage Range	380VA ± 20%(3-phase)	400VA ± 20%(3-phase)	240VA ± 20%(LEVEL 2)
Charging interface	IEC 61851、GB/T 20234、GB/T 18487-2015, GB/T 20234-2015		SAE J1772
Working Frequency	45/65 Hz
Networking method	4G/WIFI/LAN
Bluetooth	NA	Yes	Optional
Control mode	Plug and Charge/APP control / RFID card/OCPP1.6 J (QR code / RFID)
IP grade	≥ IP65
Working Temperature	-40℃～ +60℃
Working Humidity	5%-95% Non-condensing
Special Protection	UV resistance
Working altitude	≤ 2000m
Operating instructions	On-screen display / Buzzer
Status indication	On-screen display /LED breathing light
Application Scenario	Outdoor indoor parking and charging
Weight	<7 kg		<8 kg
Dimension	238mm x 95mm x 348mm

Our Services of Home 7kW 11kW 22kW Wallbox Type2 1Phase 3 Phase 16A 32A RFID APP 22KW EV Charger

1.App-based control and monitoring of charging sessions

2.Real-time charging data and analytics

3.User authentication and access control

4.Integration with third-party platforms (e.g. smart home devices, fleet management systems)

5.Customizable branding and startup screen(MOQ 100)

6.Customizable RFID Card design(MOQ 1000)

Applicable Scenes of Home 7kW 11kW 22kW Wallbox Type2 1Phase 3 Phase 16A 32A RFID APP 22KW EV Charger

★Residential Charging: Ideal for single-EV homeowners needing reliable, convenient home charging. Its compact design and high power make it a top home choice.

★Workplace Charging: Suitable for offices, factories, etc., offering employees easy EV charging during work hours.

★Public Charging: Installable in roadside areas, public parking lots, providing on-the-go EV owners a handy charging option.

★Fleet Charging: Benefits businesses with EV fleets. Boasting 7KW and 22KW high power, it quickly charges vehicles to keep fleets operational and productive.

Overall, this single-gun smart AC EV wall box charger is a versatile, reliable solution for diverse uses—an excellent investment for EV owners and businesses.
