7kW 11kW Type 2 Portable AC EV Charger with OCPP 1.6

XTECK portable AC EV charger offers compact and lightweight design in 7KW 32A and 11KW 16A models. It features quick-change multi-country plugs, intelligent current recognition, and real-time plug temperature monitoring. With GB, Type 2, Type 1, and Tesla connectors, 1.47-inch LCD touch screen, LED indicators, IP65 waterproof, WiFi, Bluetooth, 4G, APP control, and full OCPP 1.6 support.

Specifications of 7kW 11kW Type 2 Portable AC EV Charger with OCPP 1.6

Technical Information
StandardGBTType 2Type 1
Rated power3.5KW/7KW3.5KW/7KW3.84KW/7.6kW
Rated output current16A/32A16A/32A16A/32A
Input Voltage Range220VA ± 15% (1-phase)230VA ± 15% (1-phase)120VA ± 20% (LEVEL 1) / 240VA ± 20%(LEVEL 2)
Output Voltage Range220VA ± 15% (1-phase)230VA ± 15% (1-phase)120VA ± 20% (LEVEL 1) / 240VA ± 20%(LEVEL 2)
Charging interfaceIEC 61851、GB/T 20234、GB/T 18487-2015, GB/T 20234-2015SAE J1772
Working Frequency45/65 Hz
Networking methodNA
ProtocolOCPP1.6Optional
BluetoothNAOptional
Control modePlug and ChargeAPP control (Optional)
IP grade≥ IP65
Working Temperature-40℃~ +60℃
Working Humidity5%-95% Non-condensing
Special ProtectionUV resistance
Working altitude≤ 2000m
Operating instructionsBuzzerOn-screen display / Buzzer
Status indicationLED breathing lightOn-screen display /LED breathing light
Application ScenarioOutdoor indoor parking and charging
Weight<3.5kg
Dimension200mm x 100mm x 60mm


XTECK portable AC EV charger features a compact and lightweight design, available in 7KW 32A and 11KW 16A models. It comes with a quick-change input connector for multi-country plugs and intelligent current recognition. Real-time plug temperature monitoring ensures safe charging against overload. Supporting GB, Type 2, Type 1 and Tesla connectors, it is equipped with a 1.47-inch LCD screen, touch controls, LED indicators and IP65 waterproof rating. Built-in WiFi, Bluetooth, 4G, APP control and full OCPP 1.6 protocol support.


Key Function of 7kW 11kW Type 2 Portable AC EV Charger with OCPP 1.6

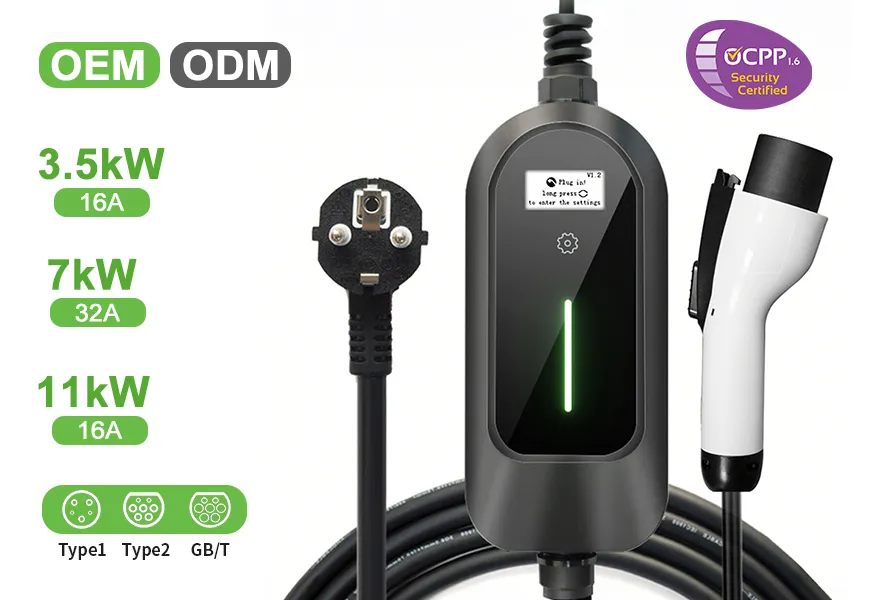

✅ Supports single-phase 32A 7KW and three-phase 16A 11KW charging

✅ Quick-change input connector compatible with multi-country plugs & intelligent current recognition

✅ Real-time plug temperature monitoring for overload and overheat protection

✅ Equipped with 1.47-inch LCD screen, touch buttons, LED indicators, and IP65 waterproof rating

✅ Built-in WiFi, Bluetooth, 4G, APP control, and full OCPP 1.6 protocol support

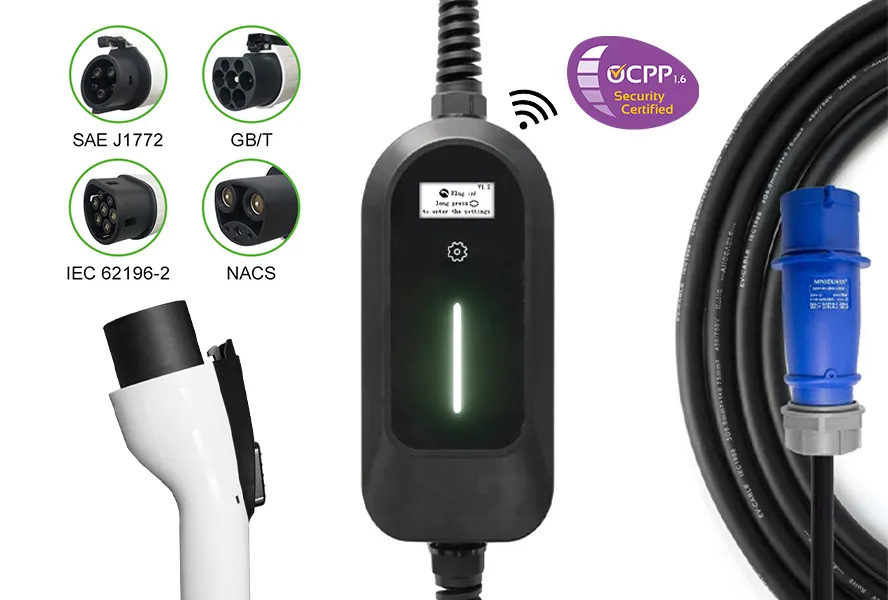

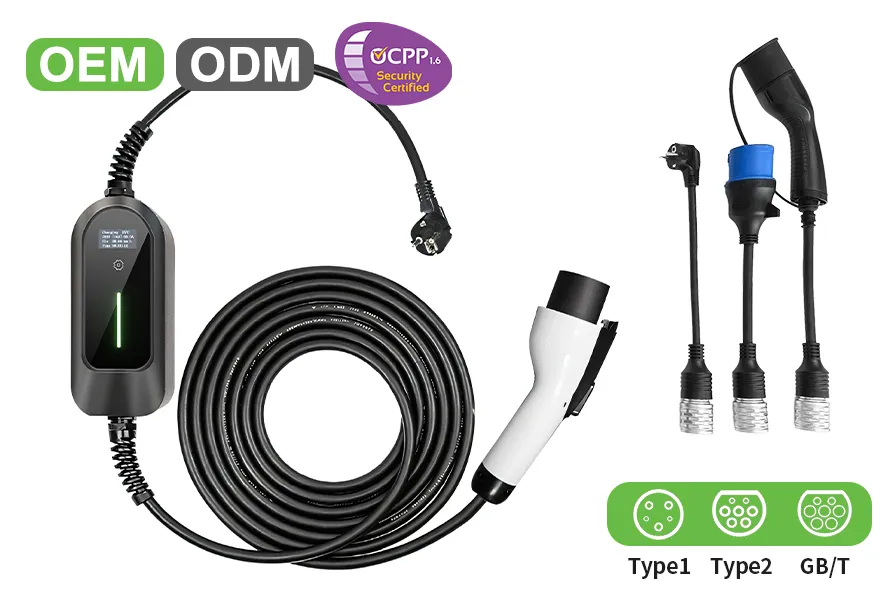

✅ Supports GB, European, American, and Tesla standard charging interfaces


Key Features and Advantage of 7kW 11kW Type 2 Portable AC EV Charger with OCPP 1.6

✅ Built-in multiple safety protections (lightning, leakage, overcurrent, overheat, over/under voltage) with LED indication and automatic power-off

✅ Flame retardant material for safe and reliable operation

✅ High-strength TPU cable with excellent high/low temperature, corrosion and tensile resistance

✅ CE certified with intelligent chip for longer service life and full protection

✅ IP65 waterproof, suitable for both indoor and outdoor use

✅ Real-time LCD display showing charging current, voltage, power consumption and temperature

✅ Professional XTECK customer support and 12-month warranty
