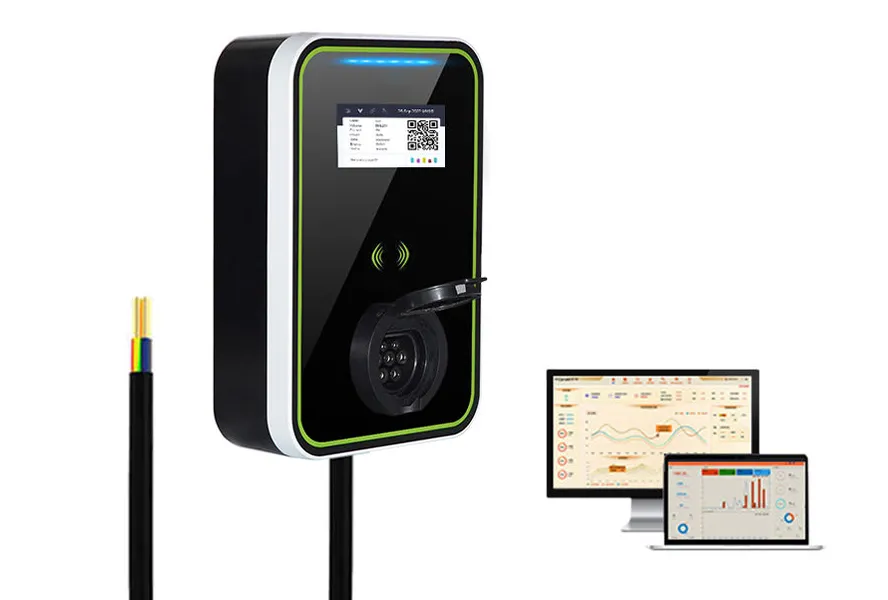

Smart Home Eves Walbox 7kw 1lKW 22KW Type2 AC Charging Station With Ocpp1.6 Wifi App

Name: Smart Home Eves Walbox 7kw 1lKW 22KW Type2 AC Charging Station With Ocpp1.6 Wifi App
Brand: XTECK NEW ENERGY TECHNOLOGY CO., LTD.
Price: 200 USD
Availability: InStock

XTECK EV charger manufacturer has three AC EV chargers: two charging cables and one socket. 3.5KW, 7KW, 11KW and 22KW are available with backward compatibility. The built-in rich interfaces can be extended on the basic PCB with functions such as WIFI APP, RFID swipe card, solar power system module, OCPP 1.6, home load balancing, etc. Our electric car charger manufacturers also have offline e-purse and other solutions for paid charging in hotels, restaurants, shopping malls, office buildings, car parks etc.

Our AC electric car charger is in an elegant design. It follows IEC 61851, GB/T 20234, SAE J1772; 16A/32A ;Type 2/Type 1/GBT Standard. High performance charging control board of our best home EV charger is compatible with all styles of electric vehicle charging. Leakage protection , Upgrade to Type A 30mA AC + 6mA DC（three phase） and IP65 waterproof and UV protection ABS casing ensure trustability and safety. It provides customers with quality, security and a friendly charging experience.

Contact Us

Specifications of Smart Home Eves Walbox 7kw 1lKW 22KW Type2 AC Charging Station With Ocpp1.6 Wifi App

Technical Information
Standard	GBT	Type 2	Type 1
Rated power	7kW/11KW/22KW	7kW/11KW/22KW	7.6kW/12KW
Rated output current	16A/32A	16A/32A	16A/32A/50A
Input Voltage Range	220VA ± 20% (1-phase)	230VA ± 20% (1-phase)	120VA ± 20% (LEVEL 1)
Output Voltage Range	380VA ± 20%(3-phase)	400VA ± 20%(3-phase)	240VA ± 20%(LEVEL 2)
Charging interface	IEC 61851、GB/T 20234、GB/T 18487-2015, GB/T 20234-2015		SAE J1772
Working Frequency	45/65 Hz
Networking method	4G/WIFI/LAN
Bluetooth	NA	Yes	Optional
Control mode	Plug and Charge/APP control / RFID card/OCPP1.6 J (QR code / RFID)
IP grade	≥ IP65
Working Temperature	-40℃～ +60℃
Working Humidity	5%-95% Non-condensing
Special Protection	UV resistance
Working altitude	≤ 2000m
Operating instructions	On-screen display / Buzzer
Status indication	On-screen display /LED breathing light
Application Scenario	Outdoor indoor parking and charging
Weight	<7 kg		<8 kg
Dimension	238mm x 95mm x 348mm

Features of Smart Home Eves Walbox 7kw 1lKW 22KW Type2 AC Charging Station With Ocpp1.6 Wifi App

★Multiple Protections for Safe Use - Safety is paramount. Our EV charger has built-in protections against lightning, current leakage, overcurrent, overheating, undervoltage, and overvoltage, indicated by varied LED flashing frequencies. It automatically powers off in abnormal situations to prevent car damage.

★Flame-Retardant Material - Anti-combustion design with flame-retardant materials to avoid accidents.

★High Quality - CE certified for longer service life. The internal smart chip protects your car and circuit, ensuring safe use.

★Universal Compatibility - Compliant with IEC 61851, GB/T 20234, SAE J1772; Type 2/Type 1/GBT standards. High-performance control board is compatible with all EVs.

★Weatherproof for Indoor/Outdoor Use - IP65 waterproof rating allows flexible placement and movement of the portable charger at home, both indoors and outdoors.

★Safe & Secure - Equipped with over-current, over-voltage, under-voltage, leakage, and overheating protection.

★Professional Customer Service - XTECK's team offers technical support and a 12-month warranty. Contact us for any dissatisfaction, and we'll resolve it promptly.

★Smart APP Control - Use the EV Smart Charger APP to control the charger, manage charging times, schedule charging remotely, and optimize for off-peak electricity. Bluetooth, Wi-Fi, and Ethernet enable automatic OTA remote firmware updates, keeping you connected when needed.

★2 RFID Cards - Lightweight and easy to carry in wallets or pockets, enabling faster and simpler charging initiation.

★Robust Safety: Upgraded Type A leakage protection (30mA AC + 6mA DC, three-phase); IP65 waterproof and UV-protected ABS casing, ensuring quality, security, and a user-friendly experience.

★Commercial-Ready Solutions: Provides offline e-purse and paid charging solutions suitable for hotels, restaurants, malls, offices, parking lots, etc.

Customer Service of Smart Home Eves Walbox 7kw 1lKW 22KW Type2 AC Charging Station With Ocpp1.6 Wifi App

✅We can provide customers with professional product advice and purchase options.

✅All emails will be responded within 24 hours during working days.

✅We have online customer service in different languages, You can communicate with us online, or contact us through email anytime.

✅All customers will get one-on-one service

Delivery Time

✅Samples or test orders can be delivered within 3-7 working days.

✅ Orders in standard products above 100pcs could be delivered within 10-15 working days(Excluding stocked products).

✅Orders that require customization could be produced within 25-35 working days.

✅We offer spare parts services to meet some market demands. Each customer has diverse product requirements, which will be finally evaluated based on the customer's actual product situation.

Customized service

We provide flexible customized services with our abundant experiences in kinds of OEM and ODM projects

✅OEM includes color, length, logo, packaging, etc. ODM includes product appearance design, function setting, new product development, etc.

✅MOQ is depend on different customized requests.

The Agency Policy

✅Please contact our sales department for more details.

After Sale service

✅The warranty of all our products is one or two years. The specific after-sale plan will be free for replacement or charging a certain maintenance cost according to the specific situations.

✅However, according to the feedback from markets, we seldom have after-sale problems because strict product inspections are carried out before leaving the factory. And all of our products are certificated by top testing institutions such as CE from EU, Providing safe and guaranteed products is always one of our greatest strengths.
