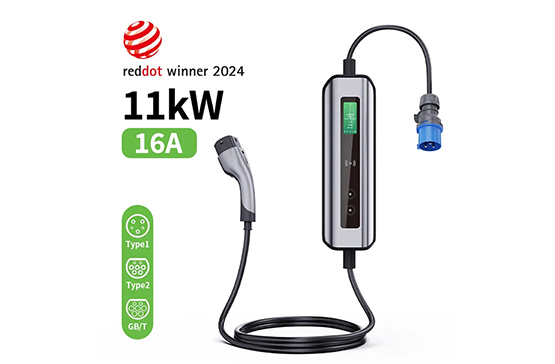

3 Phase 11KW 16Amp IEC 62169 Type 2 EV Charger Modes 2 EV Charging with 5 Pin Red CEE Plug

Name: 3 Phase 11KW 16Amp IEC 62169 Type 2 EV Charger Modes 2 EV Charging with 5 Pin Red CEE Plug
Brand: XTECK NEW ENERGY TECHNOLOGY CO., LTD.
Price: 200 USD
Availability: InStock

As a premier manufacturer, we proudly offer the Red Dot Award-winning AOE Portable Charger, delivering ultra-fast 22kW charging (80% in 2-3 hours) with all-weather reliability (-30°C to 50°C, IP65 rated). This compact 4.2kg charger features smart app control for energy savings, foldable plug design, and modular connectors. Ideal for bulk orders, our certified product (CE/TUV/UL) offers 15,000+ cycles with full OEM/ODM support and 24/7 technical service - the smarter choice for modern EV owners worldwide.

Contact Us

Specifications of 3 Phase 11KW 16Amp IEC 62169 Type 2 EV Charger Modes 2 EV Charging with 5 Pin Red CEE Plug

Technical Information
Standard	GBT	Type 2	Type 1
Rated Power	3.5kW/7kW/11kW/22kW	3.5kW/7kW/11kW/22kW	3.8kW/7.6kW/9.6kW
Intput Current	16A/32A	16A/32A	16A/32A/40A
Input Voltage	AC220V±20%/AC380V±20%	AC230V±20%/AC400V±20%	AC120V±20%/AC240V±20%
Product Size	3019792mm
Input Frequency	50-60Hz
Enclosure Material	PC/ABS/Aluminium Alloy
Charging Plug	Opt
HCI	2.23inch & Touch key
Display	LCD display screen
Charging Model	RFID Card, APP (Optional)
Communication Interface	WIFI/Bluetooth/ 4G/NFC (Optional)
Protection level	IP 66
Work humidity	5% - 95% non-condensation
Work temperature	-30℃-+50℃
Work altitude	≤2000m
Cooling Model	Natural cooling
Input line length	2M(CUSTOMIZATION ACCEPTABLE)
Gun cable lenth	3M(CUSTOMIZATION ACCEPTABLE)
current regulation	8A-10A-13A-16A-32A	8A-10A-13A-16A-32A	8A-10A-13A-16A-32A-40A

Key Features of 3 Phase 11KW 16Amp IEC 62169 Type 2 EV Charger Modes 2 EV Charging with 5 Pin Red CEE Plug

Fast AC Charging

Faster And More Efficient Charging

• Up to 32A, 400V, max. 22kW

• Suitable for business or home use

• Power adjustment can be customized

High Reliability And Durability

Chargeable at full power from -30°C to +50°C

• 2.23-inch display, better and more detailed picture

• Easy operation by touch button/APP

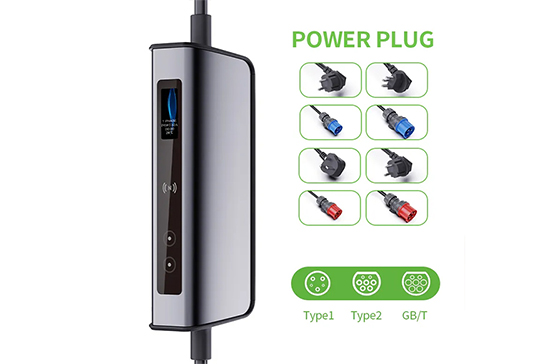

• Modular design: replaceable charging head, support users to choose the appropriate connector according to different sockets; in addition to provide optional wall-end plugs to enhance the convenience of installation.

Convenient And Fast

• Easily control, monitor and run your device when connected to the app

• Real-time dynamic energy balancing to reduce power costs

• Easy maintenance
