32A 22KW 3Phase EVSE Wallbox IEC62196 Type2 Electric Vehicle Car Charger with RFID Card APP EV Home

Name: 32A 22KW 3Phase EVSE Wallbox IEC62196 Type2 Electric Vehicle Car Charger with RFID Card APP EV Home
Brand: XTECK NEW ENERGY TECHNOLOGY CO., LTD.
Price: 200 USD
Availability: InStock

The 32A IEC 61851 380V EV charger offers black and white casing (custom colors for large orders) and customizable charging cable lengths, meeting IEC 61851 standards for wide compatibility. It features 8 safety measures (over-current, over-voltage, over-temperature, etc.), an ABS PC casing with UL94V-0 fire rating, and operates in -40°C to 85°C for harsh environments. With main board components from well-known manufacturers and a low-power, high-performance, highly integrated main control MCU, it ensures premium quality. The durable cable has a high-purity copper core for excellent conductivity (slow heating at high currents) and a high-quality outer cover resistant to erosion and low temperatures (avoiding hardening). Easy to install with recommended hard wiring for input power, it has a 1.5m installation height and includes a hook for cable storage.

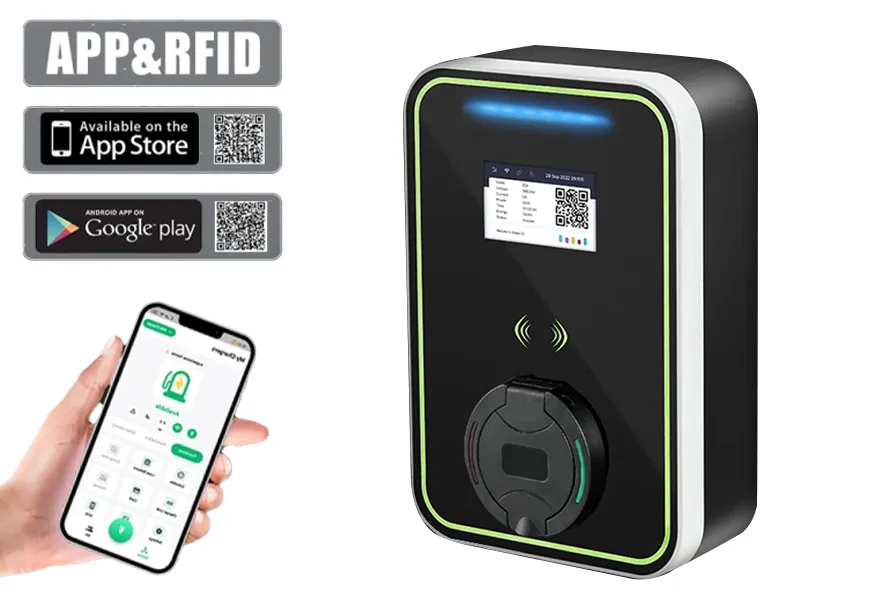

32A 22KW 3Phase EVSE Wallbox IEC62196 Type2 Electric Vehicle Car Charger with RFID Card APP EV Home 1

Contact Us

Specifications of 32A 22KW 3Phase EVSE Wallbox IEC62196 Type2 Electric Vehicle Car Charger with RFID Card APP EV Home

Technical Information
Standard	GBT	Type 2	Type 1
Rated power	7kW/11KW/22KW	7kW/11KW/22KW	7.6kW/12KW
Rated output current	16A/32A	16A/32A	16A/32A/50A
Input Voltage Range	220VA ± 20% (1-phase)	230VA ± 20% (1-phase)	120VA ± 20% (LEVEL 1)
Output Voltage Range	380VA ± 20%(3-phase)	400VA ± 20%(3-phase)	240VA ± 20%(LEVEL 2)
Charging interface	IEC 61851、GB/T 20234、GB/T 18487-2015, GB/T 20234-2015		SAE J1772
Working Frequency	45/65 Hz
Networking method	4G/WIFI/LAN
Bluetooth	NA	Yes	Optional
Control mode	Plug and Charge/APP control / RFID card/OCPP1.6 J (QR code / RFID)
IP grade	≥ IP65
Working Temperature	-40℃～ +60℃
Working Humidity	5%-95% Non-condensing
Special Protection	UV resistance
Working altitude	≤ 2000m
Operating instructions	On-screen display / Buzzer
Status indication	On-screen display /LED breathing light
Application Scenario	Outdoor indoor parking and charging
Weight	<7 kg		<8 kg
Dimension	238mm x 95mm x 348mm

Features of 32A 22KW 3Phase EVSE Wallbox IEC62196 Type2 Electric Vehicle Car Charger with RFID Card APP EV Home

★Multiple Protections for Safe Use - Safety is paramount. Our EV charger has built-in protections against lightning, current leakage, overcurrent, overheating, undervoltage, and overvoltage, indicated by varied LED flashing frequencies. It automatically powers off in abnormal situations to prevent car damage.

★Flame-Retardant Material - Anti-combustion design with flame-retardant materials to avoid accidents.

★High Quality - CE certified for longer service life. The internal smart chip protects your car and circuit, ensuring safe use.

★Universal Compatibility - Compliant with IEC 61851, GB/T 20234, SAE J1772; Type 2/Type 1/GBT standards. High-performance control board is compatible with all EVs.

★Weatherproof for Indoor/Outdoor Use - IP65 waterproof rating allows flexible placement and movement of the portable charger at home, both indoors and outdoors.

★Safe & Secure - Equipped with over-current, over-voltage, under-voltage, leakage, and overheating protection.

★Professional Customer Service - XTECK's team offers technical support and a 12-month warranty. Contact us for any dissatisfaction, and we'll resolve it promptly.

★Smart APP Control - Use the EV Smart Charger APP to control the charger, manage charging times, schedule charging remotely, and optimize for off-peak electricity. Bluetooth, Wi-Fi, and Ethernet enable automatic OTA remote firmware updates, keeping you connected when needed.

★2 RFID Cards - Lightweight and easy to carry in wallets or pockets, enabling faster and simpler charging initiation.

★Robust Safety: Upgraded Type A leakage protection (30mA AC + 6mA DC, three-phase); IP65 waterproof and UV-protected ABS casing, ensuring quality, security, and a user-friendly experience.

★Commercial-Ready Solutions: Provides offline e-purse and paid charging solutions suitable for hotels, restaurants, malls, offices, parking lots, etc.

Applicable Scenes of 32A 22KW 3Phase EVSE Wallbox IEC62196 Type2 Electric Vehicle Car Charger with RFID Card APP EV Home

★Residential Charging: Ideal for single-EV homeowners needing reliable, convenient home charging. Its compact design and high power make it a top home choice.

★Workplace Charging: Suitable for offices, factories, etc., offering employees easy EV charging during work hours.

★Public Charging: Installable in roadside areas, public parking lots, providing on-the-go EV owners a handy charging option.

★Fleet Charging: Benefits businesses with EV fleets. Boasting 7KW and 22KW high power, it quickly charges vehicles to keep fleets operational and productive.

Overall, this single-gun smart AC EV wall box charger is a versatile, reliable solution for diverse uses—an excellent investment for EV owners and businesses.
