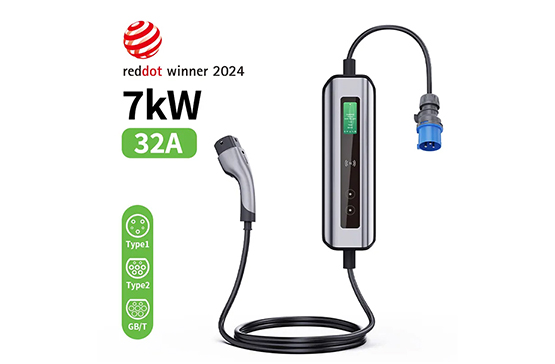

Portable EV Charger Type 2 time delay 16A 32A EU Plug IEC62196-2 EV Charging Cable

Name: Portable EV Charger Type 2 time delay 16A 32A EU Plug IEC62196-2 EV Charging Cable
Brand: XTECK NEW ENERGY TECHNOLOGY CO., LTD.
Price: 200 USD
Availability: InStock

AOE – An Efficient and Portable Home EV Charger

This award-winning charger, recipient of the 2024 Red Dot Award, delivers fast AC charging up to 22kW (32A, 400V), making it ideal for both home and commercial use. Featuring smart power adjustment for customizable charging, it operates at full power in extreme temperatures from -30°C to 50°C. The 2.23-inch touchscreen and mobile app enable remote control and real-time dynamic energy balancing to reduce electricity costs. Its modular design includes a replaceable charging head and optional wall-mounted plugs for versatile installation. With high reliability and intuitive touch/app controls, AOE provides a fast, efficient, and cost-effective charging experience.

Contact Us

Specifications of Portable EV Charger Type 2 time delay 16A 32A EU Plug IEC62196-2 EV Charging Cable

Technical Information
Standard	GBT	Type 2	Type 1
Rated Power	3.5kW/7kW/11kW/22kW	3.5kW/7kW/11kW/22kW	3.8kW/7.6kW/9.6kW
Intput Current	16A/32A	16A/32A	16A/32A/40A
Input Voltage	AC220V±20%/AC380V±20%	AC230V±20%/AC400V±20%	AC120V±20%/AC240V±20%
Product Size	3019792mm
Input Frequency	50-60Hz
Enclosure Material	PC/ABS/Aluminium Alloy
Charging Plug	Opt
HCI	2.23inch & Touch key
Display	LCD display screen
Charging Model	RFID Card, APP (Optional)
Communication Interface	WIFI/Bluetooth/ 4G/NFC (Optional)
Protection level	IP 66
Work humidity	5% - 95% non-condensation
Work temperature	-30℃-+50℃
Work altitude	≤2000m
Cooling Model	Natural cooling
Input line length	2M(CUSTOMIZATION ACCEPTABLE)
Gun cable lenth	3M(CUSTOMIZATION ACCEPTABLE)
current regulation	8A-10A-13A-16A-32A	8A-10A-13A-16A-32A	8A-10A-13A-16A-32A-40A

Key Features of Portable EV Charger Type 2 time delay 16A 32A EU Plug IEC62196-2 EV Charging Cable

Fast AC Charging

Faster And More Efficient Charging

• Up to 32A, 400V, max. 22kW

• Suitable for business or home use

• Power adjustment can be customized

High Reliability And Durability

Chargeable at full power from -30°C to +50°C

• 2.23-inch display, better and more detailed picture

• Easy operation by touch button/APP

• Modular design: replaceable charging head, support users to choose the appropriate connector according to different sockets; in addition to provide optional wall-end plugs to enhance the convenience of installation.

Convenient And Fast

• Easily control, monitor and run your device when connected to the app

• Real-time dynamic energy balancing to reduce power costs

• Easy maintenanc
